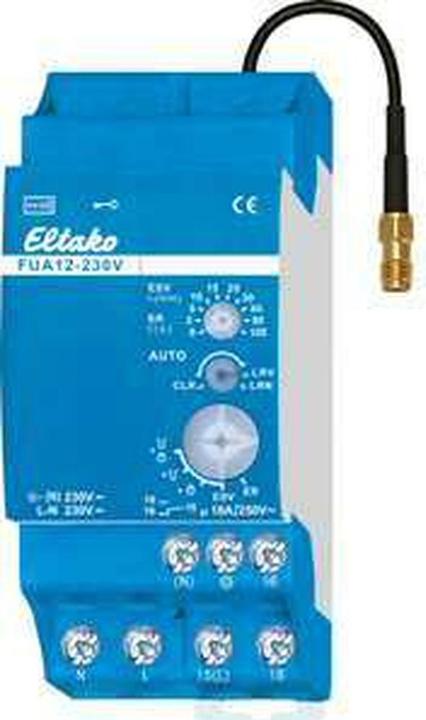

Eltako Radio universal actuator

Radio Universal Actuator with interchangeable antenna. Pulse switching relay with 1 changeover contact, potential-free 10A/250V AC, incandescent lamps 2000W, featuring DX technology. Bidirectional. Encrypted radio. Standby loss of only 0.9 watts. A radio antenna can be connected if needed. Rail-mounted device for installation on a mounting rail. Supply voltage 230V. The radio universal actuator combines the functions of a radio antenna module and an actuator as a 1-channel pulse switching relay with DX technology. In the event of a power failure, the switching state is retained. Upon restoration of power, it is defined to switch off. After installation, wait for the automatic short synchronization before connecting the switched load to the mains. Simply connect the neutral conductor to the terminal (N) and live to 15 (L). This results in an additional standby loss of only 0.1 watts. From manufacturing week 08/16, this radio actuator can also be locally controlled with a 230V control button at the terminal. The neutral conductor must also be connected to the terminal (N). A glow lamp current is not permitted. 230V control button: control current 0.4mA. Maximum parallel capacitance of the control line 0.3µF (1000m). Bidirectional radio and/or a repeater function can be activated. Any state change as well as incoming central control telegrams are confirmed with a radio telegram in bidirectional radio mode. This radio telegram can be learned into other actuators, the GFVS software, and universal displays.
