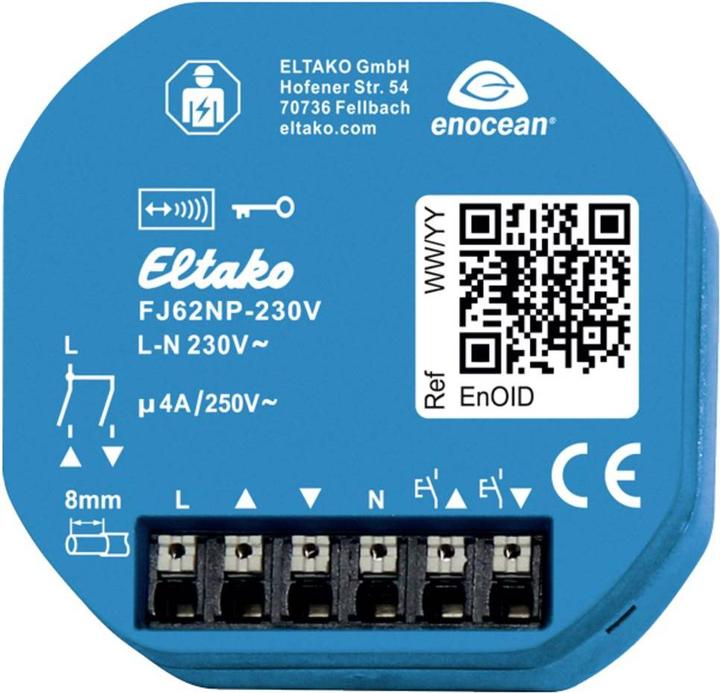

Eltako Radio shutter actuator FJ62NP-230V

Radio-controlled blind and shutter actuator 1+1 switch 4A/250V AC, not potential-free, for a shading element motor 230V AC. Standby loss only 0.6 watts. For flush mounting. Dimensions 49x51mm, 20mm deep. The connection terminals are plug terminals for conductor cross-sections from 0.2mm² to 2.5mm². With the convenient tapping technology, up to 32 radio universal switches, radio direction switches, and radio central control switches can be learned. Contact switching at zero crossing. Bidirectional radio can be activated. Supply, switching, and control voltage locally 230V. In the event of a power failure, it is defined to switch off. In addition to the radio control input via an internal antenna, this radio actuator can also be locally controlled with a possibly previously mounted conventional control switch. Either separate local control inputs for up and down as direction switches, or these two inputs can be bridged and controlled with a single switch as a universal switch. The direction change then occurs by interrupting the control signal. A glow lamp current is not permitted. Both a radio switch with the function Up, Stop, Down, Stop as a universal switch and a radio switch like a roller shutter double switch as a direction switch with pressing up for Up and pressing down for Down can be learned. A short tap immediately interrupts the movement. Additionally, central control switches with static priority can be learned. The static priority is only active as long as the radio switch is pressed. With a control signal, e.g., from a radio transmission module learned as a central control switch, the switching position Up or Down and the priority are activated. With priority, because these control signals cannot be overridden by other control signals until the central command is lifted by the end of the control signal.
