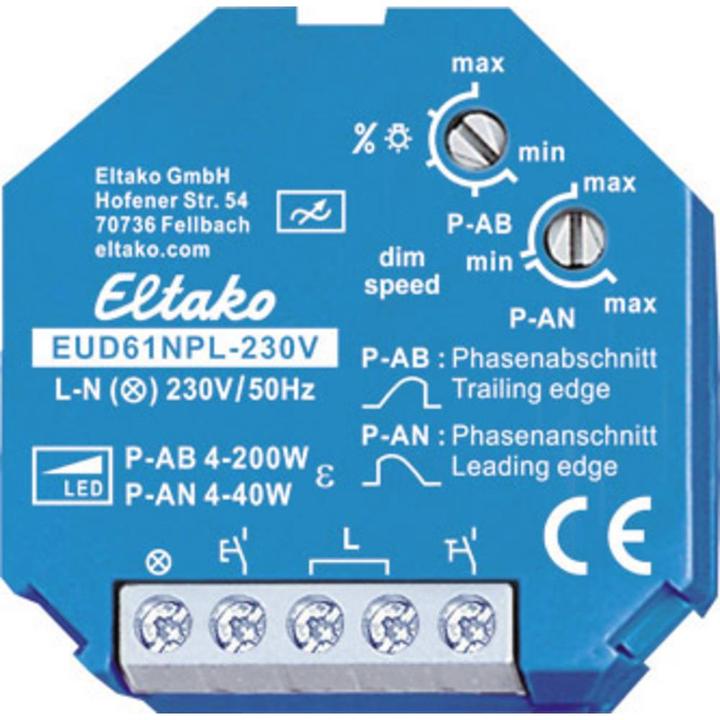

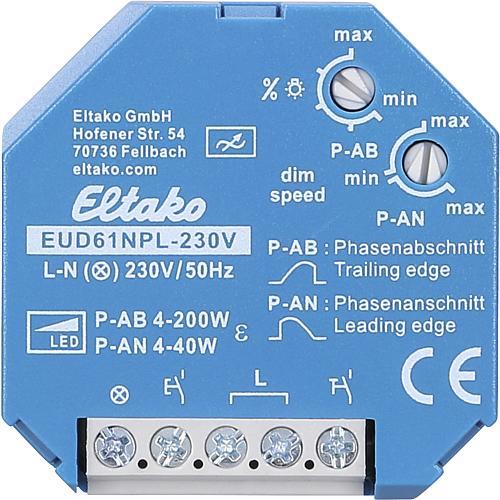

Without N-connection, this power MOSFET operates up to 200 W with a stand-by loss of only 0.5 watts. It features control inputs for light switches, allowing for adjustable minimum brightness, operating mode, and dimming speed. Designed for recessed mounting, it measures 45 mm long, 45 mm wide, and 18 mm deep. This universal dimmer switch is suitable for R and C loads up to 200 W, depending on ventilation conditions. It supports dimmable ESL and 230 V LED lamps in "phase cut" mode up to 200 W or in "phase angle" mode up to 40 W, also depending on ventilation conditions. For dimmable 230 V LED lamps that remain slightly illuminated when switched off, a basic load element GLE must be connected in parallel to the lamp.
Actuator type | Dimming actuator |
Items per sales unit | 1 x |
Mounting type | Built-in installation |
Item number | 12745560 |
Manufacturer | Eltako |
Category | Actuator |
Manufacturer no. | 61100832 |
Release date | 17.2.2020 |
Sales rank in Category Actuator | 55 of 1465 |
External links |
Colour | Blue |
Exact colour description | Blue |
Material group | Plastic |
Material | Plastic |
Actuator type | Dimming actuator |
Max. Switching capacity | 200 W |
rated current | 4 A |
Operating voltage | 230 V |
Mounting type | Built-in installation |
Mounting type | Screw fastening |
Smart Home | Not compatible |
Requires Smart Home Hub | No |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 45 mm |
Width | 45 mm |
Height | 18 mm |
Weight | 50 g |
Length | 9 cm |
Width | 7 cm |
Height | 3 cm |
Weight | 10 g |
