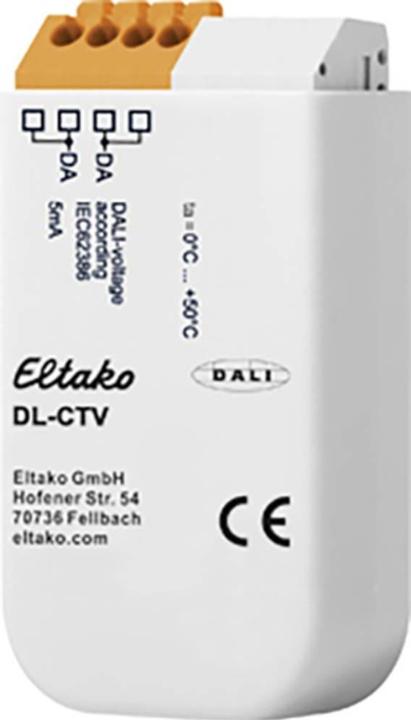

Eltako DL-CTV control module installation, flush-mounted

DALI controller for managing the circadian daylight progression of DT8-Tc capable luminaires. Suitable for luminaire installation and recessed mounting. Dimensions: 59 mm long, 33 mm wide, 15 mm deep. Standby loss is only 0.12 watts. Device for controlling DALI-DT8 luminaires (Mode Tc) with a daylight progression adapted to the biorhythm. DALI real-time clock. Automatic summer/winter time switch adjustable. Configurable: scene behavior and brightness progression. Set the clock and easily adjust the desired daylight progression using the DALI-Cockpit software tool. The DALI-CDC module is powered directly via the DALI bus. Internal battery for timekeeping (delivered with local time GMT+1). Function: The DALI-CDC sends the desired color temperature to the effective area every minute. The effective area can be defined as a single address, a group address, or broadcast. The basis for the color temperature progression consists of 24 support points (one for each full hour). The color temperature progression is interpolated between the support points. For each GOTO SCENE X command, the behavior can be configured. The DALI-CDC can be activated or deactivated, or it can ignore the command. Scene behavior can be configured separately for the device address, effective area, and broadcast control. A brightness value can be defined for each support point (default setting: MASK -> no influence on brightness).
