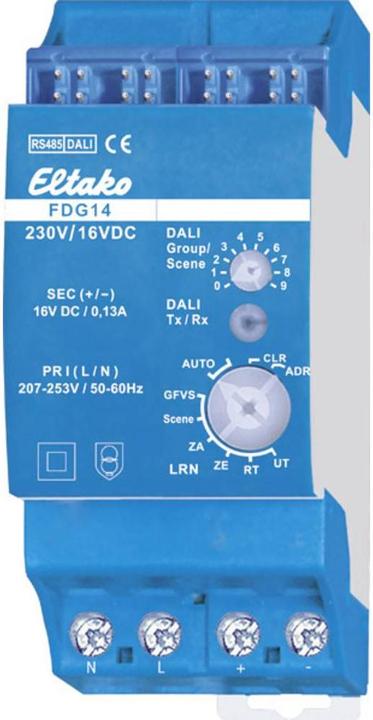

Eltako DALI gateway

DALI Gateway, bidirectional. Standby loss is only 1 watt. Connection to the Eltako RS485 bus. Cross-wiring only bus with jumper. Supply voltage 230V at terminals N and L. At the DALI +/- terminals, 16V DC/130mA is provided for up to 64 DALI devices. This gateway controls DALI devices with Enocean radio transmitters. From manufacturing week 14/16, groups 0-15 can be controlled and the broadcast command can also be issued. Additionally, DALI scenes 0-15 can be retrieved. DALI installations that are to be completely controlled with the FDG14 must therefore be configured in groups 0-15. The configuration software or control modules for this are offered by well-known manufacturers of DALI components. The FDG14 internally stores the dimming value for each of the groups 0-15 and provides this value as feedback. The same feedback telegrams are generated as with a FUD14. The FDG14 occupies 16 BR14 device addresses. The feedback from the device addresses corresponds in ascending order to the dimming values of the DALI groups 0-15. The feedback can be individually switched from dimming value telegram (%) to switch telegram (on/off) per group using PCT14. Thus, BR14 actuators can be controlled with the feedback. The FDG14 serves the function of the DALI master and the DALI power supply. Through the rotary switches, only switches for groups 0-8 and DALI scenes 0-9 can be learned. Control telegrams for groups 9-15 and scenes 10-15 are only possible through entries in PCT14. Attention: Radio switches always require a double click for manual learning into the FDG14! A single click is sufficient for CLR. A directional switch or universal switch with the same ID and button cannot be learned multiple times into different groups. The last selected group always applies.
