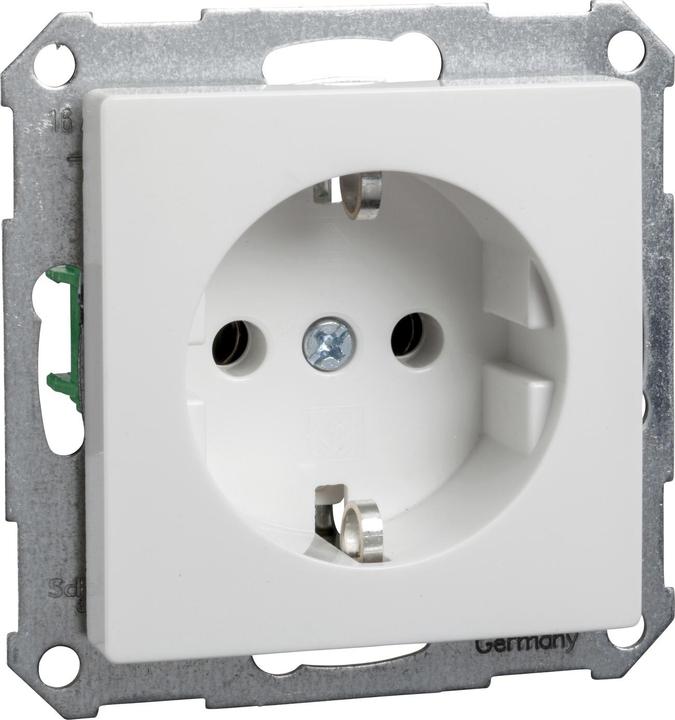

ELSO Socket insert
Delivered between Thu, 16.4. and Sat, 2.5.
More than 10 pieces in stock at supplier
More than 10 pieces in stock at supplier
Free shipping starting at 50.–
Colour2
Product details

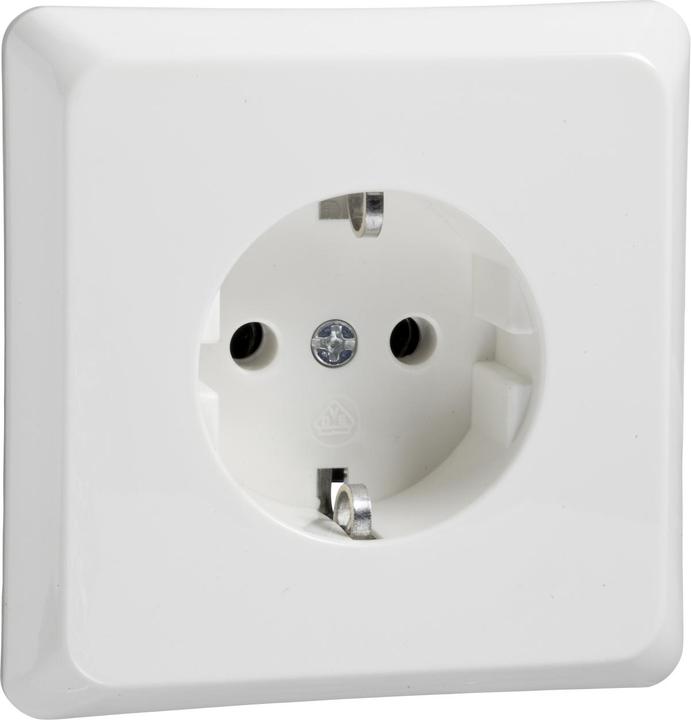

The ELSO socket insert is a reliable solution for flush mounting in hollow wall and channel installation boxes. With a rated current of 16 A and a rated voltage of 250 V AC, this insert is ideal for indoor use. The socket features a pure white plastic design and offers an IP 20 protection rating, safeguarding it against contact and dust. The socket insert is equipped with terminal clamps that accommodate copper conductors ranging from 1.5 mm² to 2.5 mm². Additionally, a surge protection module can be retrofitted to ensure extra device protection. Universal device labels are available for personalized labeling. This socket insert is a practical and functional choice for anyone seeking a safe and user-friendly socket solution.
- Suitable for hollow wall and channel installation boxes
- Retrofit with surge protection module
- Universal device labels for personalized labeling
- Terminal range for copper conductors from 1.5 mm² to 2.5 mm²
- Contact protection according to protection class IP 20.
Exact colour description | RAL number (similar)9010 |
Socket type | CEE 7/4 |
Number of cans | 1x |
Area of use | Inside |
Mounting type | Flush-mounted |
Item number | 23692149 |
Manufacturer | ELSO |
Category | Sockets |
Manufacturer no. | 265054 |
Release date | 11.1.2023 |
Colour | White |
Exact colour description | RAL number (similar)9010 |
Material group | Plastic |
Material | Thermoset |
Socket type | Built-in socket |
Socket type | CEE 7/4 |
Number of cans | 1x |
Protection type (IP code) | IP20 |
Nominal current | 16 Ah |
Nominal voltage | 250 V |
Area of use | Inside |
Mounting type | Flush-mounted |
Mounting type | Screw fastening |
connector type | Plug terminal |
Additional properties | Contact protection |
Country of origin | Germany |
CO₂ emissions | 16.89 kg |
Climate contribution | CHF 0.40 |
Stack depth | 4 cm |
Length | 4.80 cm |
Width | 7.60 cm |
Height | 7.90 cm |
