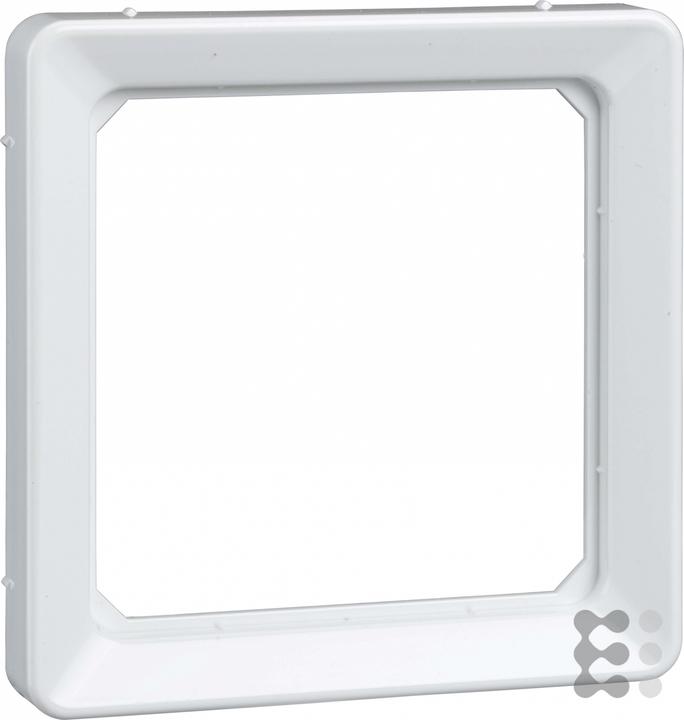

ELSO Combination frame
More than 10 pieces in stock at supplier
Length4
Product details
The ELSO combination frame is a versatile cover frame designed for the installation of built-in devices with central plates measuring 50x50 mm. It complies with the DIN 49075 standard and features an extra-large square cutout that allows for the use of PANDUIT central plates for up to three connector inserts. The frame is made from high-quality, halogen-free thermoplastic and is finished in a classic pure white, making it an elegant choice for various applications. Installation can be done both horizontally and vertically, providing flexible mounting options. With an IP20 protection rating, the combination frame is suitable for use in dry indoor environments. It is easy to install and offers a reliable solution for integrating electrical components in residential and commercial spaces.
- Suitable for central plates with 50x50 mm according to DIN 49075
- Installation possible in horizontal and vertical orientation
- Made from halogen-free thermoplastic
- Protection class IP20 for use in dry indoor environments
- Compatible with PANDUIT central plates for up to three connector inserts.
Colour | White |
Switch programme type | Covering frame |
Number of inlets | 1 x |
Width | 80 mm |
Item number | 21242588 |
Manufacturer | ELSO |
Category | Accessories switch programme |
Manufacturer no. | 203084 |
Release date | 21.6.2022 |
Colour | White |
Exact colour description | Pure white |
Material group | Plastic |
Material | Plastic |
Switch programme type | Covering frame |
Number of inlets | 1 x |
Mounting type | Flush-mounted |
Mounting type | Adhesive |
Mounting direction | Horizontal |
Additional properties | Halogen-free |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 100 mm |
Width | 80 mm |
Height | 80 mm |
Diameter | 65 mm |
