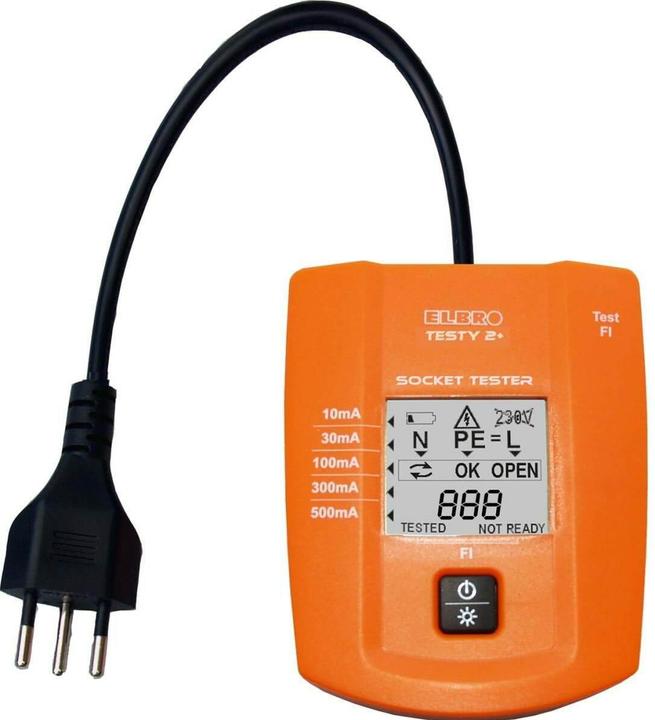

Elbro Testy 2

Socket tester with RCD trip. Measurement category: CAT III 300 V. Voltage range: 230 V AC ± 15%. Test current: ≤ 3.5 mA. Capacitive sensor detects if it is being held in hand. Easy-to-read and illuminated LCD display. Dimensions (L x W x H): 73 x 93 x 26 mm. These socket testers are essential testing devices for every professional. All life-threatening connection errors in the sockets are displayed by the testers on the large, illuminated display. This allows for quick and safe verification of installations. Additionally, the voltage between L and N is measured and displayed as "correct / incorrect." The TESTY 2 is also equipped with an RCD testing circuit, which allows for testing various RCDs with rated currents from 10 mA to 500 mA with a tripping time of 200 msec. Furthermore, the TESTY 2 measures the tripping time and displays it on the LED display in [msec]. The RCD testing is controlled by a microcontroller that starts the test precisely at the zero crossing. With these testing devices, it is not necessary to place a finger on a metal electrode, as the built-in capacitive sensor detects when it is being held in hand. The TESTY 1 and TESTY 2 can be used to test sockets, extension cords, device cables, and connection lines in 230 V networks. Use in recreational areas, such as boats and caravans, is possible with an adapter. The connection of the conductors and the phase position are tested.
