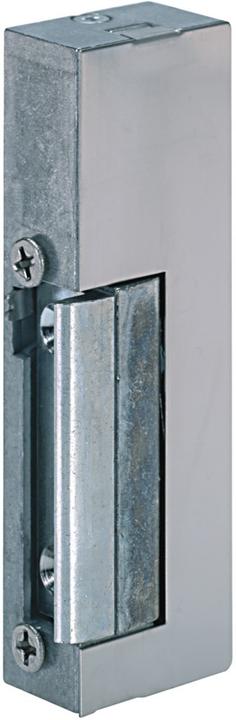

Assa Abloy effeff electric strike 19E DIN L/R o.S.
Manufacturer: Assa Abloy effeff
Designation: Electric strike without striking plate
Type: 19E DIN L/R o.S.
Design: Standard electric strike
Assembly: Frame part
Voltage: 6-12 V
With locking: No
With mechanical unlocking: Yes
With feedback: No
Opening direction to DIN: Left/Right
Water-protected: No
Mounting type: Built-in
Current type: AC/DC
Mode of operation: Operating current
Further details:
Electric strike 19E without striking plate. Can be used DIN right and left due to 180° rotated mounting. A range of narrow striking plates is available. If DIN right is ordered, the mirror-image version (19A) is supplied. If model 19 is combined with DIN direction 4, the long housing part is on top for correct mounting.
EAN: 4042203078734.
Additional properties | Water protected |
Length | 100 mm |
Item number | 20023601 |
Manufacturer | effeff |
Category | Door opener + closers |
Manufacturer no. | 19E---------D11 |
Release date | 16.3.2022 |
Sales rank in Category Door opener + closers | 103 of 2011 |
Colour | Silver |
Exact colour description | Silver |
Material group | Metal |
Material | Zinc die-cast |
Application range | Indoor |
Door mechanism type | Door opener |
applicability | Glass door |
Additional properties | Water protected |
Scope of delivery | DIN left. The electric strike can also be used on DIN right-hand doors in many cases thanks to independent reassembly., Strike 19E without striking plate |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Power supply | Electrical connection |
Length | 100 mm |
Width | 40 mm |
Height | 30 mm |
Length | 4 cm |
Width | 3 cm |
Height | 10 cm |
Weight | 170 g |
