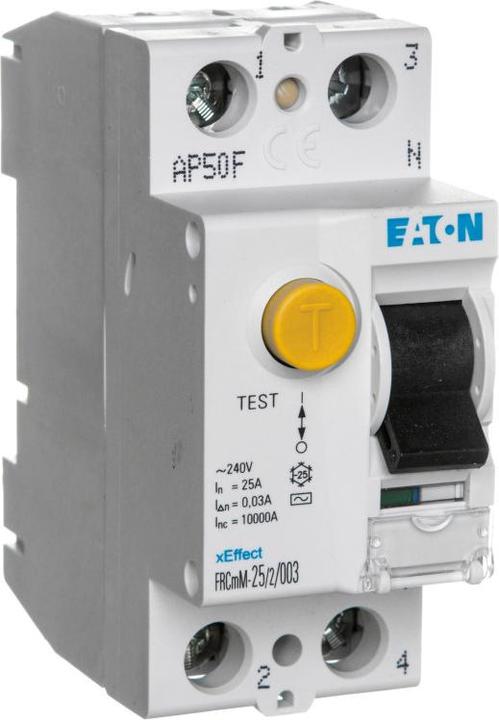

Eaton RCD switch, 25A, 2p, 30mA, type AC 170391

Residual current circuit breaker FRCMM-25/2/003 2P 25A 0.03A Type AC – Top and bottom mounting terminals. Optical contact position indicator in red-green. The function of the circuit breaker is not dependent on the mounting position. Current direction – each circuit breaker is required. Check it monthly by pressing the "Test" button – the circuit breaker should then trip. The test function only checks the operation of the switch for residual current; it does not replace the measurement of the grounding resistance Re and the insulation resistance of the lines. For use in circuits with conventional lamps with or without electronic ignition, circuit breakers with delayed tripping are recommended. Rated short-circuit current 10kA. Rated voltage 230V; 50 Hz short-delay circuit breaker type G with increased surge resistance type U for use with frequency converters. Uninterrupted, short-delay, selective tripping. Technical data: Rated voltage: 230 V 50 Hz, Rated current: 25 A, Residual current: 0.03 A, Short-circuit strength: 10 kA, Sensitivity: AC, Number of poles: 2P, Mounting: DIN rail, Protection class: IP20.
