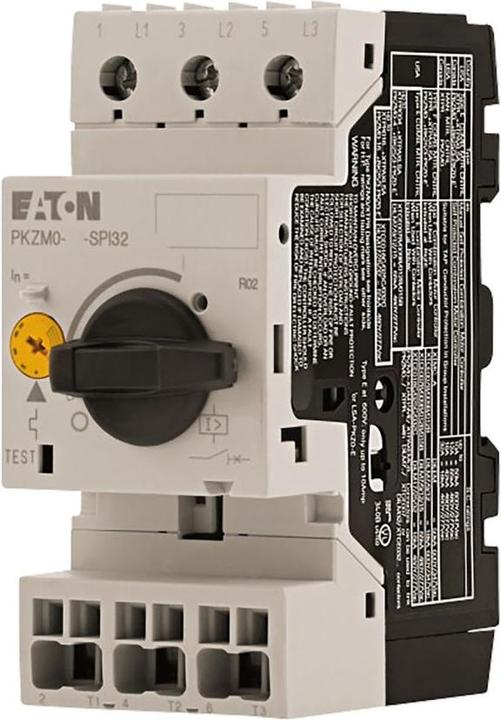

Eaton PKZM0-4-SPI32

Eaton motor-protective circuit-breaker PKZM0-4-SPI32 Manufacturer :Eaton Designation :Motor-protective circuit-breaker Type :PKZM0-4-SPI32 Overload release Current setting :4 A Setting range of instantaneous short-circuit release :62 A With thermal protection :no Phase loss sensitive :yes Tripping method :thermomagnetic Rated operating voltage :690 V Rated uninterrupted current Iu :4 A Rated operating power at AC-3, 230 V :0.75 kW Rated operating power at AC-3, 400 V :1.5 kW Connection type main circuit :Screw/spring-operated connection Actuating element version :Rotary knob Device type :Built-in device Fixed installation technology With integrated auxiliary switch :no With integrated undervoltage release :no Number of poles :3 Rated short-circuit breaking current Icu at 400 V, AC :150 kA Protection class (IP) :IP20 Height :102 mm Width :45 mm Depth :75 mm Eaton motor-protective circuit-breaker PKZM0-4-SPI32: further details Motor-protective circuit-breaker, IEC/EN 60947, VDE 0660, overload release = 2.5 - 4 A, max. 2.5 A, Tripping technology: thermomagnetic, With thermal protection: yes, Phase loss sensitive: yes, Rated uninterrupted current Iu = 0.16 A, Rated operating power at AC-3, 230 V = 0 kW, Rated operating power at AC-3, 400 V = 0 kW, Actuating element version: rotary knob, Number of poles: 3, Rated short-circuit breaking current Icu at 400 V, AC = 150 kA, Protection class: Unit = IP20, Terminals = IP20, Ambient temperature: storage = - 40 - 80 °C, open = -25 - +55 °C, Energy feed-in direction as required , EAN: 4015081972807.
