Product details

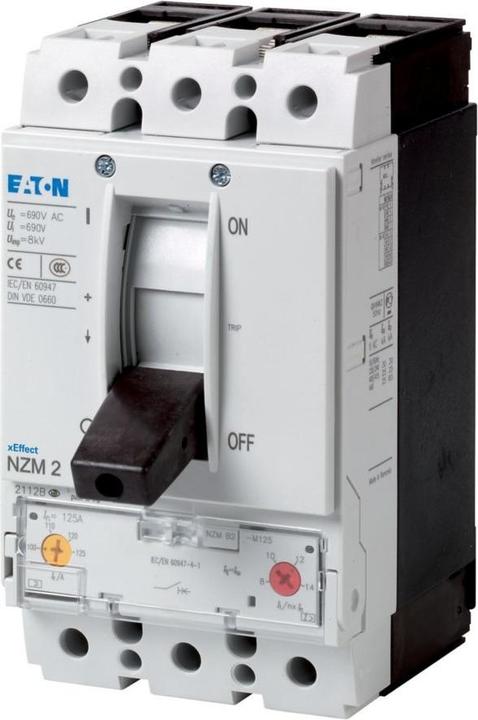

Eaton circuit-breaker NZMH2-M40
Manufacturer: Eaton
Designation: Circuit-breaker 3p 40A
Type: NZMH2-M40
Overload release current setting: 32-40 A
Setting range of the instantaneous short-circuit release: 320-560 A
With thermal protection: Yes
Phase failure sensitive: No
Tripping technology: Thermomagnetic
Rated operating voltage: 690 V
Rated continuous current Iu: 40 A
Rated operating power at AC-3, 230 V: 11 kW
Rated operating power at AC-3, 400 V: 18.5 kW
Connection type main circuit: Screw connection
Actuator design: Toggle lever
Device type: Built-in device
Fixed installation technology
With integrated auxiliary switch: No
With integrated undervoltage release: No
Number of poles: 3
Rated short-circuit breaking current Icu at 400 V, AC: 130 kA
Protection class (IP): IP20
Height: 184 mm
Width: 105 mm
Depth: 149 mm
Eaton circuit-breaker NZMH2-M40: further details
The circuit-breakers of the NZM..-M series cover all applications with just four compact sizes and are suitable for the IEC market. Installation is always flexible thanks to modular function groups. With thermomagnetic release for motor protection. Notes: Tripping class 10A, IEC/EN 60947-4-1, IEC/EN 60947-2, circuit-breakers fulfill all requirements of utilization category AC-3.
