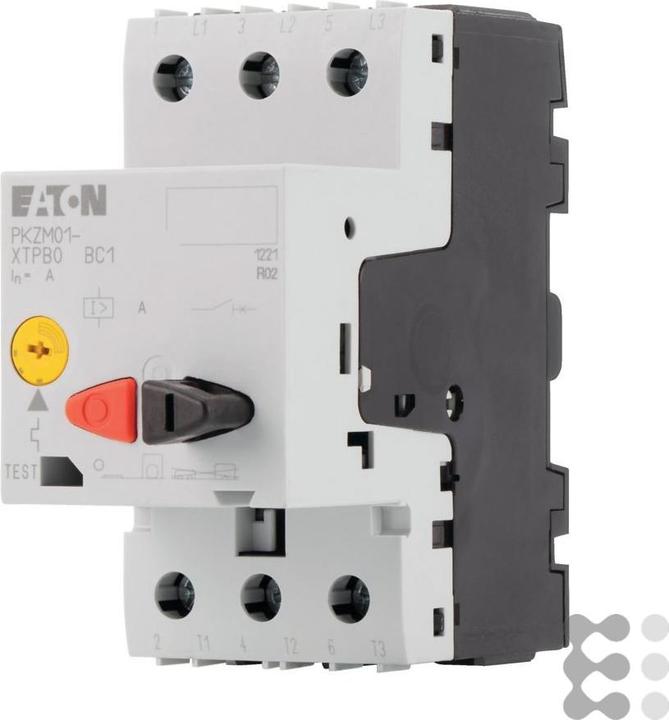

Eaton Motor protective circuit breaker,1-1.6A

Ratings
BrandMore from Eaton
Delivered Thu, 10.9.
Only 3 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

The Eaton motor protection switch, model PKZM01-1.6, is a reliable and safe device designed according to IEC/EN60947 standards. This 3-pole switch features an adjustable overload and instantaneous short-circuit protection function, which is essential for protecting motors in various applications. With a rated operating voltage of up to 690 V and a maximum current of 1.6 A, this switch is suitable for use in industrial and commercial environments. The phase failure sensitive design ensures that the motor is immediately shut down in the event of a phase failure to prevent damage. Installation can be done using either screw or snap mounting, simplifying the setup process. With an IP20 protection rating, the switch is intended for use in dry indoor environments and offers high safety with its finger-safe construction. This device is an essential component for the safe control and protection of electric motors.

  • Adjustable overload and short-circuit protection function
  • Phase failure sensitive
  • Screw and snap mounting possible
  • Finger-safe according to VDE 0106 T. 100
  • Thermomagnetic tripping technology.

Key specifications

Circuit breaker type
Motor protection switch
Mounting type
Built-in installation
number of poles
3
Tripping characteristic
Sluggish ---
Length
90.50 mm
Width
45 mm

General information

Item number
10155247
Manufacturer
Eaton
Category
Residual-current device
Manufacturer No.
PKZM01-1.6
Release date
27.11.2018

Colour

Colour
Black
Exact colour description
Black, White

Circuit Breaker Features

Circuit breaker type
Motor protection switch
Mounting type
Built-in installation
number of poles
3
Tripping characteristic
Sluggish ---
Rated current
0.01 A
Rated voltage
690 V
voltage type
AC
Insulation voltage (Ui)
690 V
Residual current
1 A
Protection type (IP code)
IP20

Origin

Country of origin
China, Germany

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
90.50 mm
Width
45 mm
Height
90 mm
Weight
280 g

Package dimensions

Length
10.50 cm
Width
9.60 cm
Height
4.90 cm
Weight
280 g
