Product details
Power: 0.75 kW
Phase: 1
Supply voltage: 230 V AC
Rated current: 4.3 A
Ambient temperature: +50°C
Total width: 124 mm
Total length: 81 mm
Total depth: 184 mm
Drive type: Vector control
Fieldbus communication type: CANOpen, ModBus-RTU
Filter included: Yes
Standards met: CE, cUL, EAC, RCM, UkrSEPRO, UL

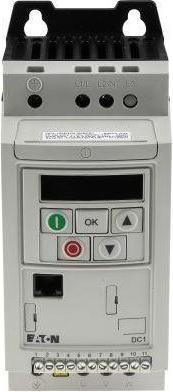

AC drives PowerXL DC1 series - single-phase input, 230 V. The DC1 series variable frequency drives are compact and specially designed for simple applications. With only 14 basic parameters and particularly simple assembly and installation, the DC1 is perfect for quick commissioning. This makes the compact variable frequency inverter ideal for series production applications in machine building. Additionally, further parameters and functionalities can be flexibly activated to enable the DC1 to handle more demanding applications. These variable frequency drives can also be used as stand-alone units directly on site, and they are equipped with a setpoint potentiometer, a selector switch, and a mains changeover switch. Typical applications for this series include fans, pumps, and conveyor belt systems. Features include single-phase input, three-phase motor connection, LED display, quick start-up with 14 basic parameters, V/Hz control with start voltage boost and slip compensation, integrated PI controller, CANopen and Modbus integrated, large overload capacity: 150% for 60 seconds, 175% for 2 seconds, and IP20 protection.
