Product details

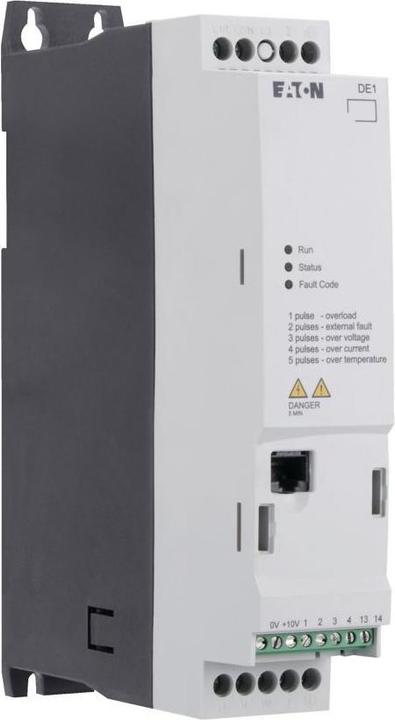

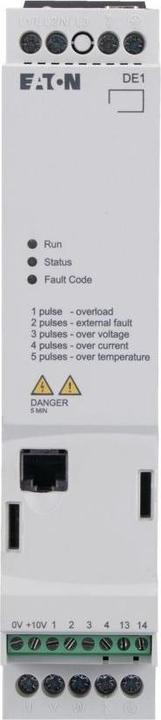

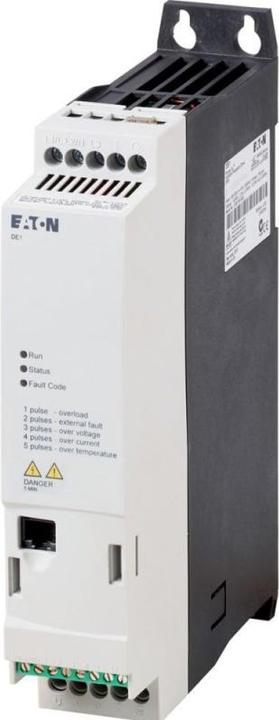

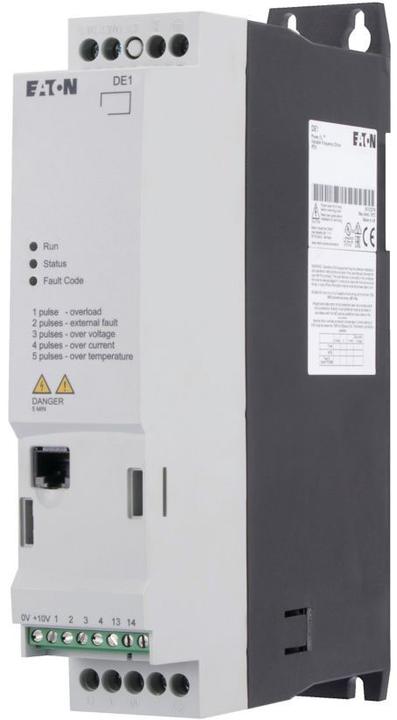

The Electric GmbH speed starter DE11-343D6FN-N20N from Eaton is a highly advanced frequency converter designed for a wide range of applications in industrial automation. With a rated power of 1.5 kW and a rated current of 3.6 A, this device provides reliable speed control in electric drive systems. The frequency converter supports a maximum output frequency of 300 Hz, allowing for precise adjustment of motor performance. Its robust construction and IP20 protection rating make it ideal for use in demanding environments. The DE11-343D6FN-N20N is designed to operate at temperatures ranging from -10 °C to 50 °C and can be used in both 3-phase input and output applications. Installation is straightforward on DIN rails, facilitating integration into existing systems. With support for various communication protocols such as Modbus and PROFINET IO, this frequency converter is versatile and offers high flexibility in system integration.
- Maximum output frequency of 300 Hz for precise speed control
- Supports multiple communication protocols such as Modbus and PROFINET IO
- Operating temperature range of -10 °C to 50 °C for versatile applications
- Easy DIN rail mounting for flexible installation
- IP20 protection rating for use in industrial environments.
Mains voltage | 380 V |
Power | 1.50 kW |
Supports protocol | CAN, DeviceNet, INTERBUS, INTERBUS Safety, KNX, Modbus, Profibus, PROFINET IO, SERCOS, TCP/IP |
Protection type (IP code) | IP20 |
Item number | 20024990 |
Manufacturer | Eaton |
Category | Frequency converters |
Manufacturer no. | 180664 |
Release date | 16.3.2022 |
Mains voltage | 380 V |
Input phase number | 3 x |
Output phase number | 3 x |
Electric current output | 3.60 A |
Power | 1.50 kW |
Relative symmetrical mains frequency tolerance | 10 % |
Relative symmetrical mains voltage tolerance | 10 % |
Type of inverter | U-inverter |
Supports protocol | CAN, DeviceNet, INTERBUS, INTERBUS Safety, KNX, Modbus, Profibus, PROFINET IO, SERCOS, TCP/IP |
Protection type (IP code) | IP20 |
Country of origin | United Kingdom |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Drehzahlstarter DE11-343D6FN-N20N |
Width | 4.50 cm |
Depth | 16.90 cm |
Height | 23 cm |
