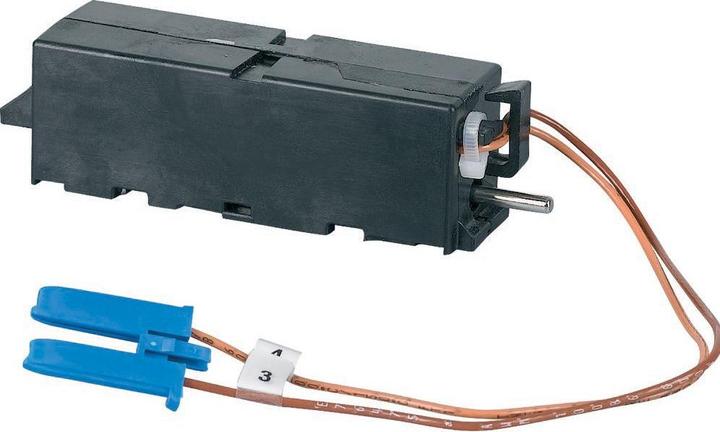

Eaton EATO Undervoltage release

Supplementary device, undervoltage release, cannot be combined with a second working current release. Retrofit kit, maximum switching frequency of operations per minute is 3, limited to 3 per minute due to the high inrush current within 35 ms. Please note: the switching frequency of the switch is 60 per hour. Rated control supply voltage Us 48 V DC, operating range x Us 0.85 - 1.1 factor, max. holding current In 0.089 A, max. inrush current (35 ms) In 16 A, max. holding power AC/DC 5 VA/W, max. inrush power (35 ms) AC/DC 850 VA/W, total switching time of the circuit breaker at Us=100% 37 ms, usable for IZMX16..., IZMX40..., INX16..., INX40...
