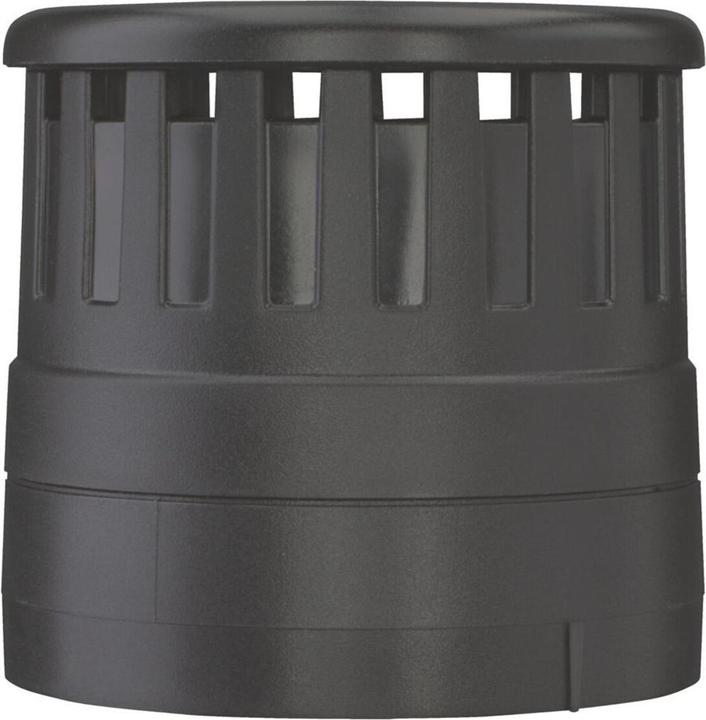

Eaton Continuous/pulse Sounder, 24V, 100dB

Series: SL7
Assembly type: Continuous / Pulse signal generator
Multifunction: Yes
Current type: AC, DC
Supply voltage: 24 V AC/DC
Decibel min: 88 dB
Decibel max: 100 dB
Height: 71 mm
Base diameter: 73.2 mm
Temperature max: +60°C

The SL7 modular safety tower from Eaton increases the safety, productivity, and availability of your machinery and equipment. These new signal towers, with their attractive rounded shape, feature a 100 dB acoustic module for improved audibility and IP66-rated mounting hardware that is impervious to even strong water jets. The new quick mounting and wiring system of the SL7 signal towers allows easy and quick change of the composition of the individual signal colors. The mounting adapter uses a bayonet mount, so electrical wiring only needs to be connected once, meaning the lower part can remain on the machine. Various mounting options are available for applications where ceiling clearance is limited or different signals are required on the left or right side. Type approvals and certifications for Europe and North America have been obtained; shipping classifications and CCC are pending.

Features and Benefits:

• Available colors for the international market: red, yellow, green, blue, clear, and orange
• Illumination options: Continuous light, flashing light, strobe light, and variable strobe light
• LEDs and high power LEDs for greater brightness
• Acoustic modules with up to 8 different signals and adjustable volume for optimal adaptation to any environmental conditions
• High power LEDs for additional brightness
• IP66 protection against strong water jets from any direction
• Modules can be quickly changed with a simple rotation
• Bayonet mount for quick and easy installation and removal
• Transport cover for cables and connections
• Available in 24, 120, or 230 V versions.
