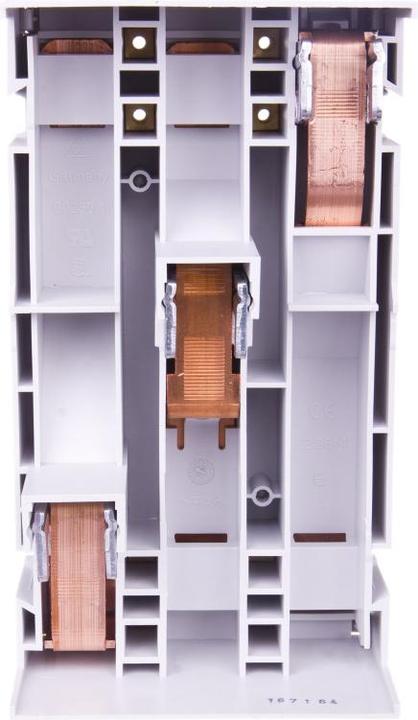

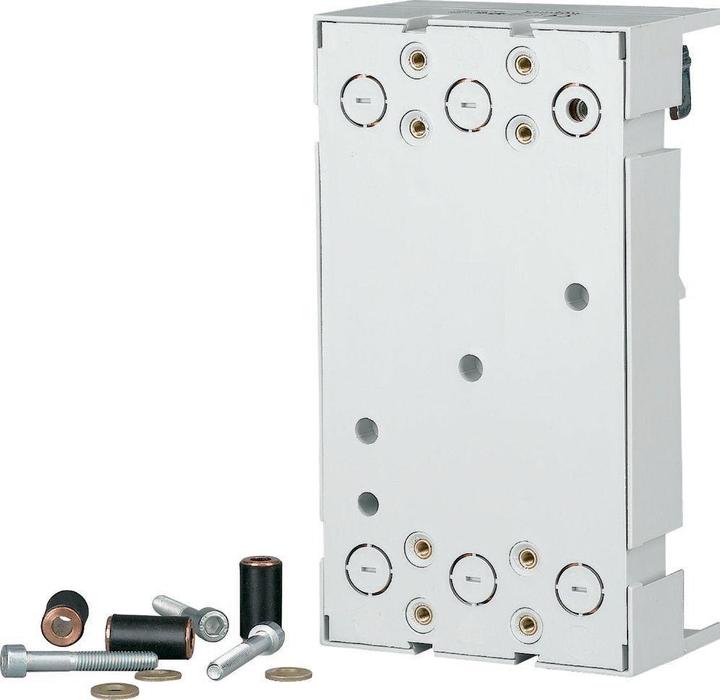

Eaton Busbar adapter, 3p, for NZM2, 104555

Eaton busbar adapter NZM2-XAD250

Manufacturer: Eaton
Designation: Busbar adapter for NZM 250A
Type: NZM2-XAD250
Busbar equipment: Without
Electrical connection version: Other
Rated current In: 250 A
Min. busbar thickness: 5 mm
Max. busbar thickness: 10 mm
Busbar width: 30 mm
Busbar spacing: 60 mm
Width of adapter: 106 mm

Further details: Type-tested busbar adapter for NZM circuit-breakers and N switch-disconnectors, for mounting on flat copper bars 12-30x5-10, double T and triple T profile, rated operational current Ie=250A, suitable for NZM2, PN2, N(S)2, adapter width=106mm, rated operating voltage Ue=690VAC, screw connection to the busbar 5mm or 10mm thick, top or bottom connection possible by turning the adapter, temperature resistant up to 120°C, self-extinguishing to UL 94, tracking resistance CTI 200, number of poles=3-pole, busbar centre distance=60mm, can be used in conjunction with busbar system SASY 60i, UL approved.
