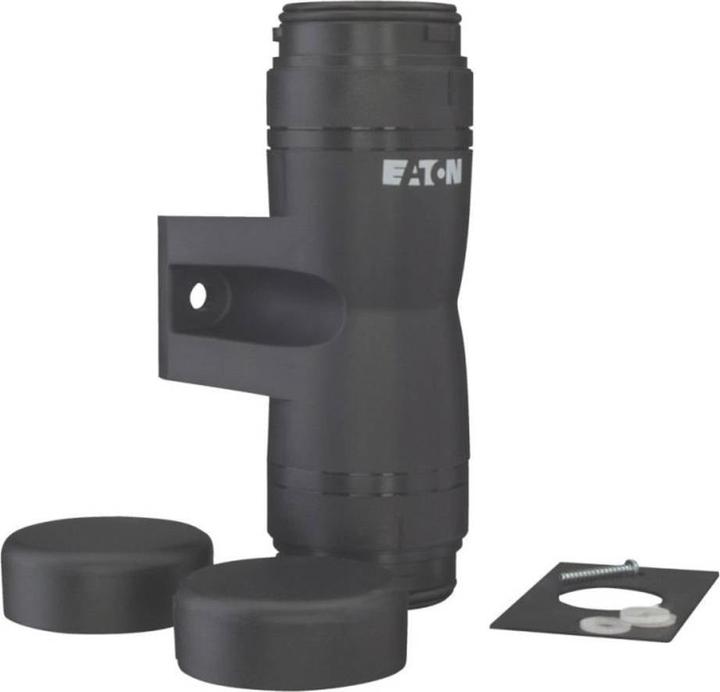

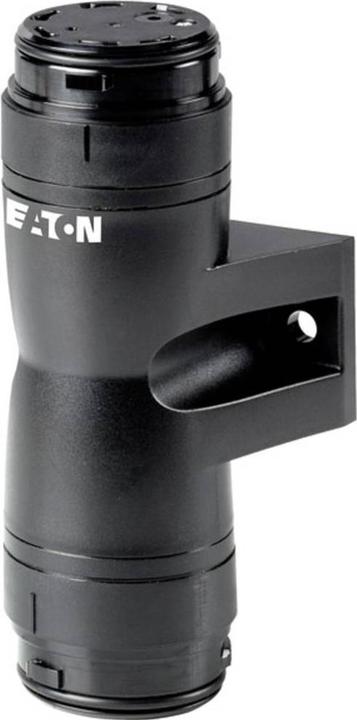

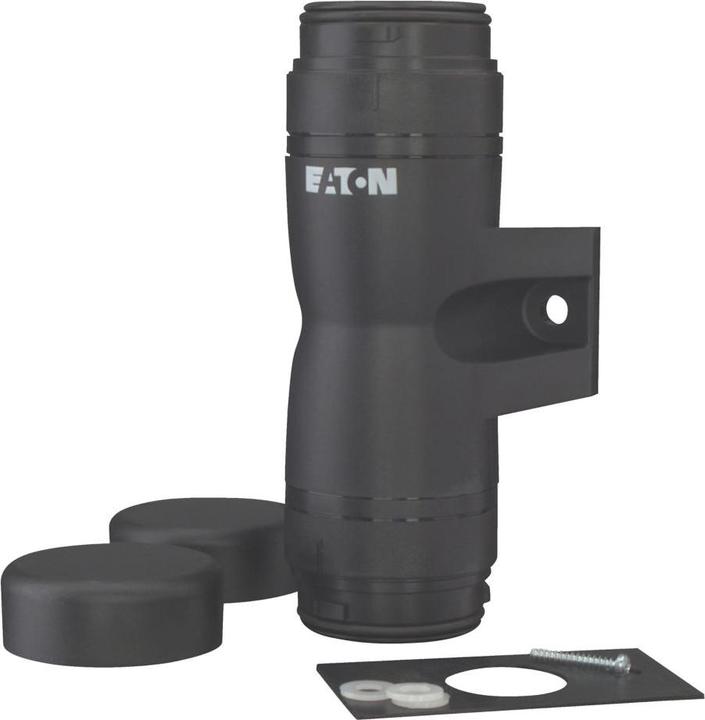

Eaton Base for Vertical Mounting 2 sides, 40mm

Series: SL4
Assembly type: Connection socket for vertical mounting, 2 sides
Current type: AC, DC
Supply voltage: 24 V AC/DC, 110 V AC, 230 V AC
Socket diameter: 40 mm, 43 mm
Protection class: IP66

The SL4 modular safety tower from Eaton increases the safety, productivity, and availability of your machinery and equipment. These new signal towers, with their attractive rounded shape, also feature a 100 dB acoustic module for improved audibility and IP66-rated mounting hardware that is impervious to even strong water jets. The new quick mounting and wiring system of the SL4 signal towers allows easy and quick change of the composition of the individual signal colors. The mounting adapter uses a bayonet mount, so electrical wiring only needs to be connected once, meaning the lower part can remain on the machine. Various mounting options available provide application possibilities where ceiling clearance is limited or different signals are required on the left or right side. Type approvals and certifications for Europe and North America have been obtained; shipping classifications and CCC are pending.

Features and Benefits:
Available colors for the international market: red, yellow, green, blue, clear, and orange
Illumination options: Continuous light, flashing light, strobe light, and variable strobe light
LEDs and high power LEDs for greater brightness
Acoustic modules with up to 8 different signals and adjustable volume for optimal adaptation to any environmental conditions
High power LEDs for additional brightness
IP66 protection for protection against strong water jets from any direction
Modules can be quickly changed with a simple rotation
Bayonet mount for quick and easy installation and removal
Transport cover for cables and connectors
Available in 24, 120, or 230 V versions
Slim design, ideal for installations where space is limited.
