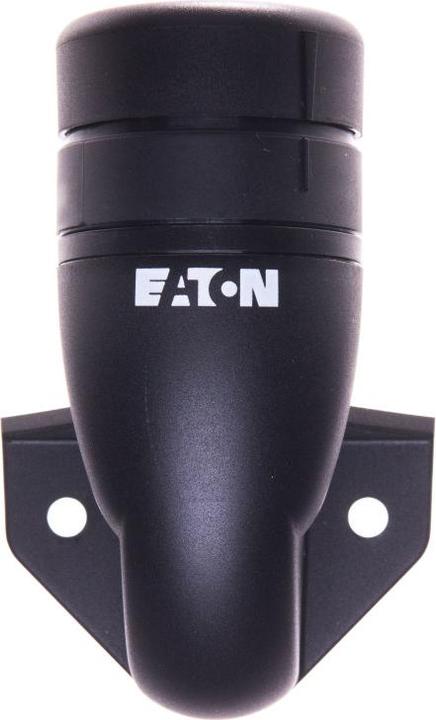

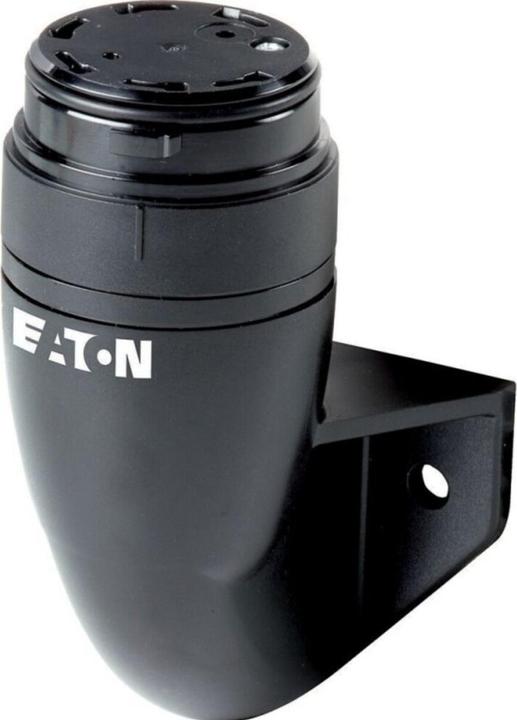

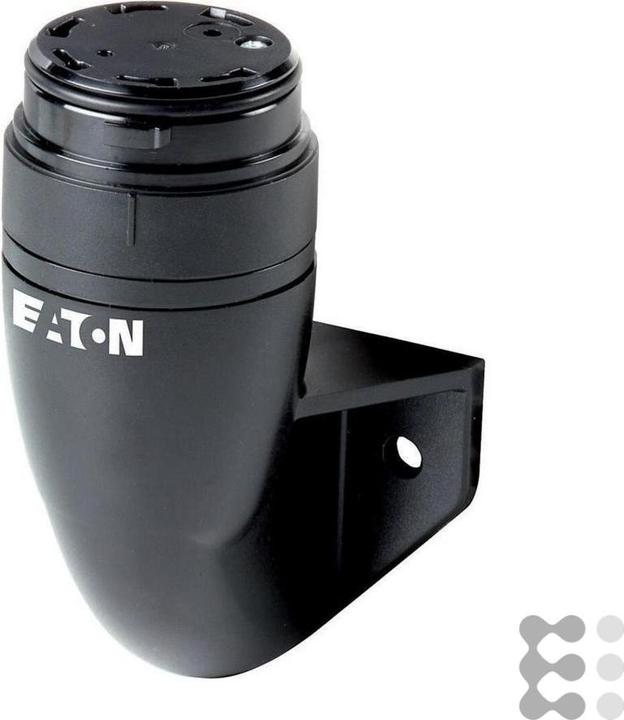

Eaton Base for Vertical Mounting 1 side, 40mm

Series: SL4
Module type: Connection base for vertical mounting, 1 side
Current type: AC, DC
Supply voltage: 24 V AC/DC, 110 V AC, 230 V AC
Base diameter: 40 mm, 43 mm
Protection class: IP66

IEC/EN 60947-5-1 Modular signal towers SL4, Eaton. The modular SL4 safety tower from Eaton increases the safety, productivity, and availability of your machines and devices. These new signal towers, with their attractive rounded shape, also feature a 100 dB acoustic module for improved audibility and IP66 mounting parts that are impermeable even to strong water jets. The new fast mounting and wiring system of the SL4 signal towers enables simple and fast change of the composition of the individual signal colors. The mounting adapter uses a bayonet socket so that the electrical wiring only needs to be connected once, allowing the lower part to remain on the machine. Various mounting options are available for applications with limited ceiling clearance or the need for different signals on the left or right side. Type approvals and certifications for Europe and North America have already been obtained; shipping classifications and CCC are still pending.

Properties and advantages:

• Available colors for the international market: red, yellow, green, blue, clear, and orange
• Lighting variants: Continuous light, flashing light, stroboscopic light, and variable stroboscopic light
• LEDs and high-performance LEDs for greater brightness
• Acoustic modules with up to 8 different signals and adjustable volume for optimum adaptation to any ambient conditions
• High-performance LEDs for additional brightness
• Protection class IP66 for protection against strong water jets from any direction
• Modules can be changed quickly with a simple rotation
• Bayonet mount for quick and easy installation and removal
• Transport cover for cables and connections
• Available in 24, 120, or 230 V versions
• Slim design, ideal for installations where space is limited.
