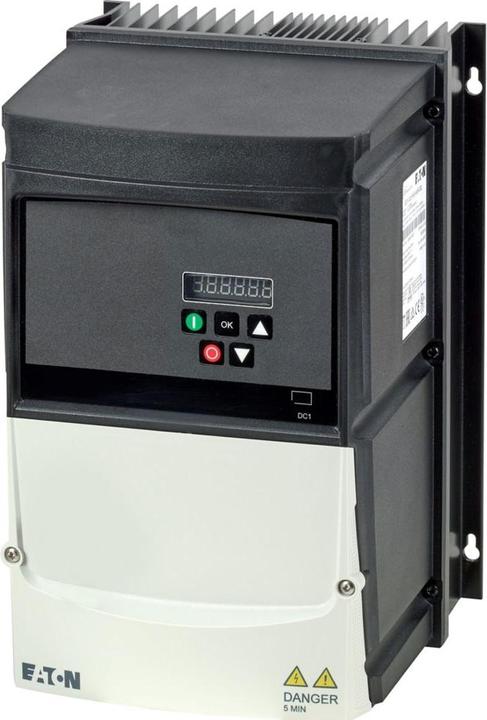

Eaton 199409

The DC1 frequency inverter is a powerful device designed for operation with a rated operating voltage of 230 V AC or 240 V AC. It offers both single-phase and three-phase output voltage and is suitable for use in various applications. With a maximum overload capacity of 150% and a corresponding motor power of up to 4 kW, this frequency inverter is ideal for operating four-pole, both internally and externally ventilated three-phase asynchronous motors. The IP66/NEMA 4X protection class ensures high resistance to dust and water, making it suitable for demanding environments. The frequency inverter is equipped with a variety of interfaces, including OP-Bus (RS485) and Modbus RTU, allowing for easy integration into existing systems. Additionally, it features a 7-segment display for simple monitoring and control.

• Maximum overload of 150% for short periods
• IP66/NEMA 4X protection class for high environmental resistance
• Integrated interfaces such as OP-Bus (RS485) and Modbus RTU
• Radio interference filter and brake chopper for improved performance
• Compliance with international standards such as IEC/EN 61800-2 and IEC/EN 61800-5-1.
