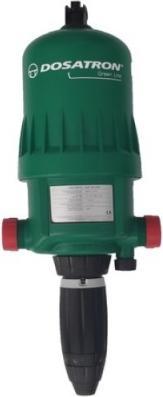

Dosatron Proportional feeder D9 GL2

The Dosatron proportional dispenser is connected to the water supply and uses only water pressure as its driving force. In this way, it draws in the dosing concentrate, doses it to the set desired percentage, and mixes it with the driving water. The well-mixed working solution produced flows through the dispenser. The amount of product to be dosed is proportional to the water flow rate (higher suction rate at higher pressure and flow), even with fluctuations in flow or pressure.

Complete content

Technical data:

• Dosing rate: 0.2-2.0%
• Flow rate: 500-8,000 l/h, 0.5-8 m³/h
• Connection: 1 1/2" female thread
• Suction volume: approx. 1.7 l
• Pressure range: 0.3-8.0 bar
• With bypass lever.
