Dormakaba Door closer TS 93 B Contur Design

Indoor
Ratings
BrandMore from Dormakaba
Delivered between Wed, 11.6. and Wed, 2.7.

Product details

Sliding door closer according to EN 1154 with CE marking in Contur design, featuring a significantly reduced opening moment for easy door operation in accordance with DIN SPEC 1104, designed for installation on the hinge side. Closing speed and end stop can be comfortably adjusted from the front without steps via a valve. Hydraulic control for opening damping and closing delay is adjustable. Mounting bracket with a universal hole group system. Usable for DIN left and right. Suitable for door leaf installation on the hinge side (opening angle up to 180° possible) or head installation on the opposite hinge side (opening angle limited to approximately 120° - 145°). Available upon request in TS 93 G version, for door leaf installation on the opposite hinge side or head installation on the hinge side.

Key specifications

type
Attached
Length
285 mm
Item number
13945368

General information

Manufacturer
Dormakaba
Category
Door opener + closers
Manufacturer no.
43520011
Release date
6.10.2020
External links
Manufacturer's site (de)

Colour

Colour
White
Exact colour description
Traffic white RAL 9016

Material

Material group
Metal
Material
Aluminium, Steel

Application range

Application range
Indoor

Door mechanisms properties

Door mechanism type
Door closer
type
Attached

Scope of delivery

Scope of delivery
1 piece

Origin

Country of origin
Singapore

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

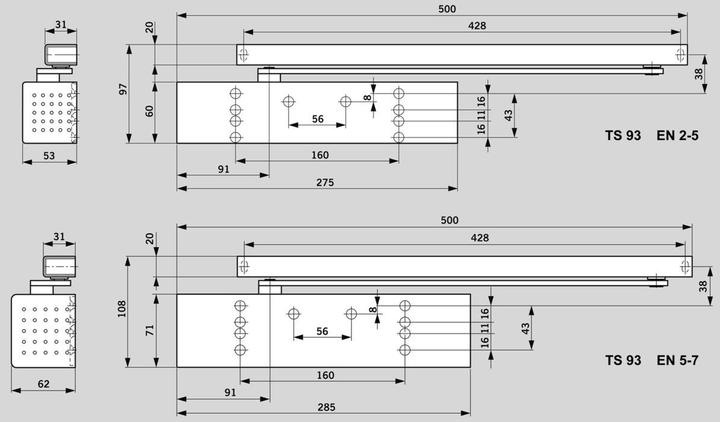

Product dimensions

Length
285 mm
Width
285 mm
Height
71 mm

30-day right of return
24 Months Warranty (Bring-in)
