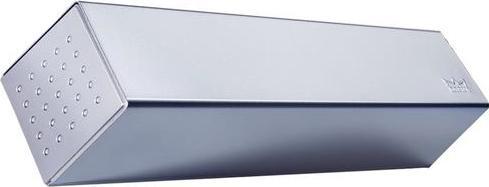

Dormakaba Door closer TS 93 B Contur Design

Dormakaba Door Closer TS 93 B Normal Mounting, Silver, EN 5-7

Manufacturer: Dormakaba
Description: Dormakaba Door Closer TS 93 B Normal Mounting, Silver, EN 5-7
Type: TS 93 B Contur Design
Country of Origin: Germany
Color: Silver
Size: EN 5-7

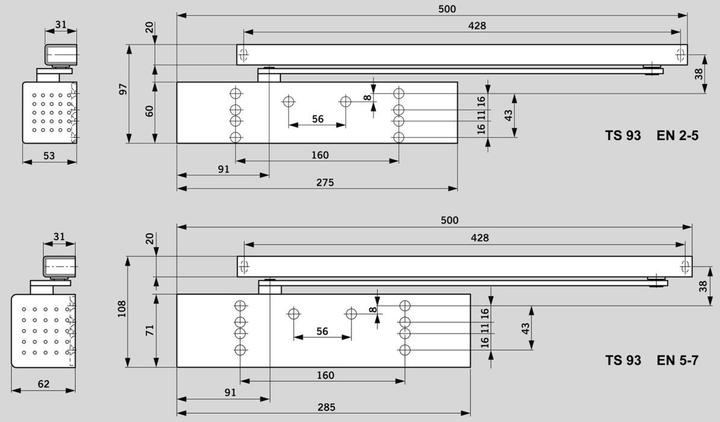

Maximum Leaf Width: 1600 mm
Length: 285 mm
Finish: Silver EN 5-7
Depth: 62 mm
Height: 71 mm
Model: TS 93 B

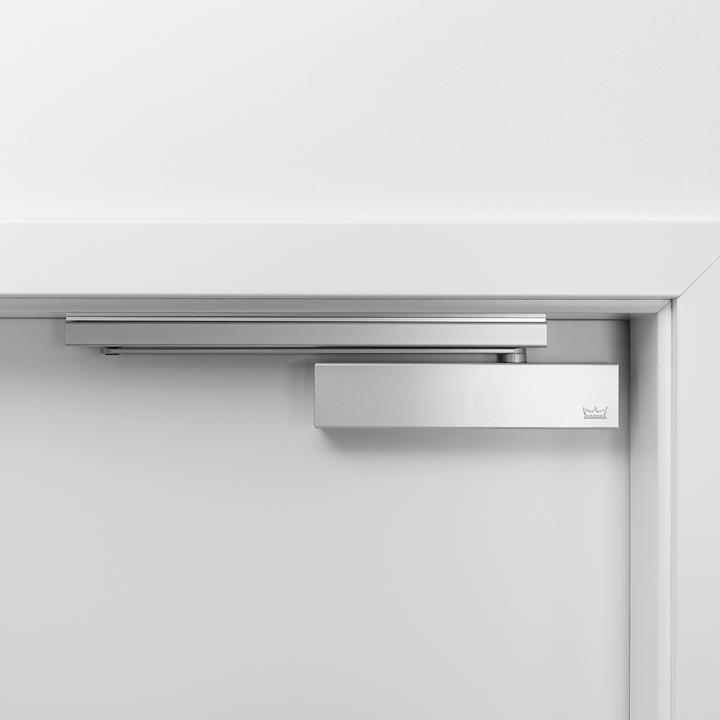

Mounting Type: Normal Mounting Hinge Side
Packaging Size: 1 Piece

Additional Details:

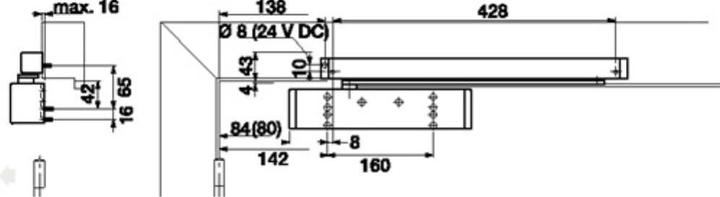

Sliding rail door closer according to EN 1154 with CE marking in Contur Design, featuring a strongly decreasing opening moment for easy door opening in accordance with DIN SPEC 1104 for mounting on the hinge side. Closing speed and end stop can be comfortably adjusted from the front without steps via a valve. Hydraulically controlled opening damping and closing delay are adjustable. Mounting console with a universal hole group system. Usable for DIN left and right for door leaf mounting on the hinge side (opening angle up to 180° possible) or head mounting on the opposite hinge side (opening angle limited to approximately 120° - 145°).

Scope of Delivery: Delivery without sliding rail, please order separately.
EAN: 4021226300848.
