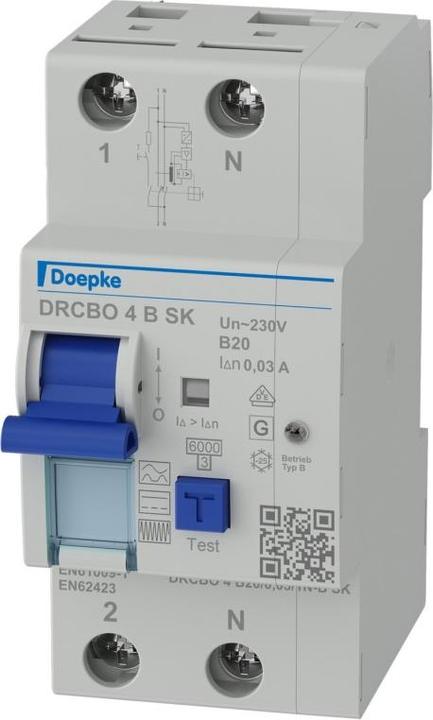

Doepke DRCBO 4 B20/0.03/1N-

Ratings
BrandMore from Doepke
Delivered between Sat, 11.7. and Sat, 25.7.
free shipping

Product details

The DRCBO 4 B20/0.03/1N- from Doepke is a highly advanced combination RCD/MCB that integrates both residual current and overload protection in a compact device. This switch not only protects people from dangerous residual currents but also safeguards electrical systems against short circuits and overloads. With a rated breaking capacity of 6 kA and an all-current sensitive design, the DRCBO 4 is optimized for frequencies ranging from 0 Hz to 150 kHz. This makes it particularly suitable for applications where high system availability is required. The reduced sensitivity to higher frequencies minimizes the risk of false tripping due to system conditions. The switch is designed for mounting on DIN rails and offers a variety of practical features, including a switching position indicator and a labeling window, which facilitate installation and maintenance.

  • All-current sensitive for residual currents from 0 Hz to 150 kHz
  • Compact size for all rated currents
  • Separate indication of the tripping cause
  • Terminal blocks with a wide clamping cross-section range
  • Quick mounting on DIN rails.

Key specifications

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
Mounting type
Top-hat rail
number of poles
2
Length
67 mm

General information

Item number
33800098
Manufacturer
Doepke
Category
Residual-current device
Manufacturer no.
09949105
Release date
17.5.2023

Circuit Breaker Features

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
Mounting type
Top-hat rail
number of poles
2
Tripping characteristic
B
Rated current
20 A
Rated current
0.03 A
Rated voltage
230 V
voltage type
AC
Rated insulation voltage Ui
440 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
Germany, Italy

Voluntary climate contribution

CO₂ emissions
18.08 kg
Climate contribution
CHF 0.43

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
67 mm

30-day right of return
24 Months Warranty (Bring-in)
