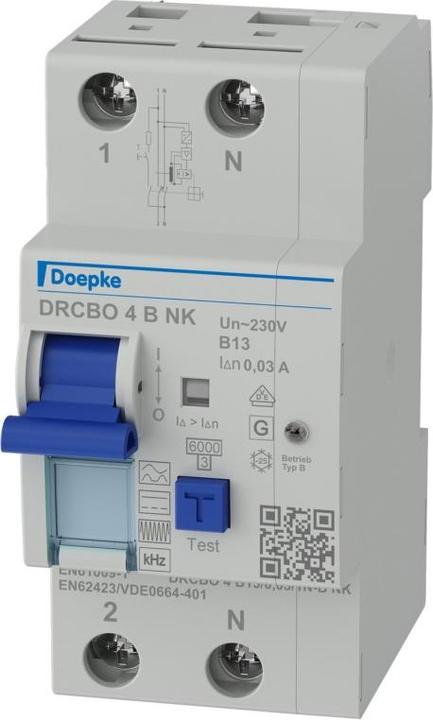

Doepke DRCBO 4 B13/0.03/1N-

Ratings
Delivered between Wed, 22.10. and Fri, 7.11.
free shipping

Product details

The DRCBO 4 B13/0.03/1N- from Doepke is a highly advanced circuit breaker that combines the functions of a residual current device (RCD) and a miniature circuit breaker (MCB) in a compact unit. This product provides comprehensive protection for people and electrical systems by safeguarding against earth faults, short circuits, and overload situations. With a rated breaking capacity of 6 kA and a type B tripping characteristic, this switch is particularly suitable for lighting and socket circuits. Its all-current-sensitive properties allow for protection at frequencies from 0 Hz to 150 kHz, making it ideal for various applications in commercial and industrial installations. The DRCBO 4 is designed for mounting on DIN rails and offers a range of practical features, including a switching position indicator and a labeling window to facilitate handling and installation.

  • All-current sensitive for fault currents from 0 Hz to 150 kHz
  • Compact size for all rated currents
  • Separate indication of the tripping cause
  • Terminal blocks with a wide clamping cross-section range
  • Mounting type: Quick fastening on mounting rail.

Key specifications

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
Length
67 mm
Width
2.50 mm
mounting style
Top-hat rail
number of poles
2
Item number
33800128

General information

Manufacturer
Doepke
Category
Residual-current device
Manufacturer no.
09949203
Release date
17.5.2023

Circuit Breaker Features

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
mounting style
Top-hat rail
number of poles
2
Tripping characteristic
B
Rated current
13 A
Rated current
0.03 A
Rated voltage
230 V
voltage type
AC/DC
Rated insulation voltage Ui
440 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
Germany, Italy

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
67 mm
Width
2.50 mm
