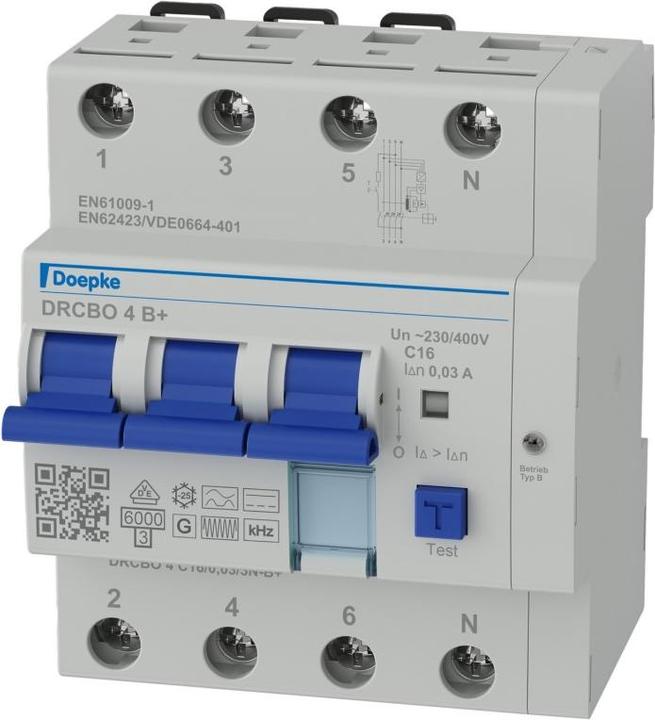

Doepke DOEP FI/LS combination

Ratings
Delivered between Thu, 14.8. and Fri, 5.9.

Product details

The DOEP FI/LS combination from Doepke is an innovative protective switch that combines the functions of a residual current circuit breaker (FI) and a miniature circuit breaker (LS) in a compact device. This combination provides comprehensive protection for people and electrical systems by safeguarding against both fault currents and short circuit or overload situations. With a rated breaking capacity of 6 kA and all-current-sensitive technology, this switch is capable of detecting smooth direct fault currents as well as other fault currents up to frequencies of 20 kHz. Installation is straightforward on a DIN rail, and the size is designed to fit into various installations. The DRCBO 4 is optimized for circuits with high inrush currents and offers a separate indication of the trip reason, making troubleshooting easier. This combination is ideal for use in residential and commercial installations where safety and reliability are of utmost importance.

  • All-current sensitive for fault currents with frequencies from 0 Hz to 20 kHz
  • Voltage-independent tripping for type A fault currents
  • Compact size for all rated currents
  • Separate indication of the trip reason
  • Mounting type: Quick fastening on mounting rail.

Key specifications

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
Length
67 mm
Width
4.50 mm
mounting style
Top-hat rail
number of poles
4
Item number
33800250

General information

Manufacturer
Doepke
Category
Residual-current device
Manufacturer no.
09948324
Release date
17.5.2023

Circuit Breaker Features

Circuit breaker type
Miniature circuit-breaker/residual current circuit-breaker combination
mounting style
Top-hat rail
number of poles
4
Tripping characteristic
C
Rated current
16 A
Rated current
0.03 A
Rated voltage
400 V
voltage type
AC/DC
Rated insulation voltage Ui
440 V
Residual current (rated differential current)
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
67 mm
Width
4.50 mm
