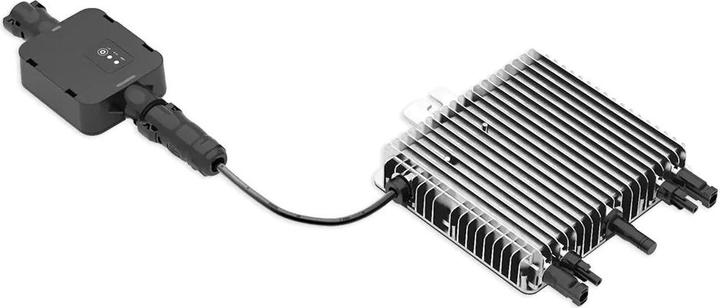

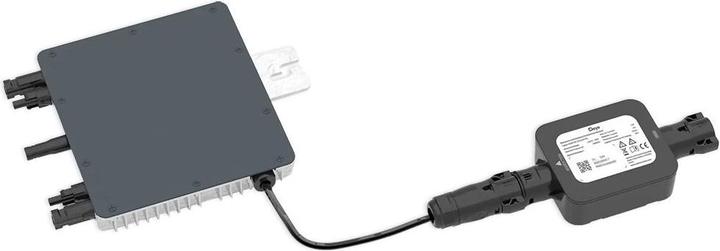

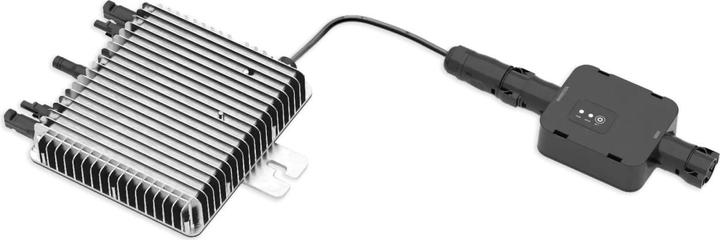

Deye Microinverter 800G3-EU-Q0

The DEYE microinverter SUN-M80G3-EU-Q0 is the perfect inverter for your balcony power plant, particularly distinguished by its integrated Wi-Fi module and built-in NA relay. Additionally, it features intelligent network and monitoring systems that highlight its performance of 800 W.

The integrated NA relay (approved by the Federal Network Agency) has an output power of 800 W, which can be throttled down to 600 W. It offers safe and intelligent monitoring at the module level as well as a rapid shutdown function. The inverter is equipped with two MPP trackers and comes with a 15-year warranty.

The grid connection complies with the standards IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE guideline R25, G98, and VDE-AR-N 4105. Safety standards meet EMC/standards IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, and IEC/EN 62109-2.

The integrated protection relay in the DEYE SUN-M80G3-EU-Q0 enables automatic switching operations that are crucial for the smooth operation of the solar system. As a control center, the relay manages electrical processes and connects the inverter with other components of the solar system, such as batteries or loads, for efficient use of the generated solar power.

The relay plays a critical role in safety by protecting the inverter and connected devices from overloads or malfunctions. This precise monitoring of current flows ensures the stability and longevity of the entire solar system.

The integration of the reliable SUN-MI-RELAY, approved by the Federal Network Agency, into the DEYE SUN-M80G3-EU-Q0 significantly enhances the functionality and safety of the inverter, allows for efficient use of solar energy, and provides protective mechanisms for the system.

Installation is straightforward as long as the maximum values of the inverter are not exceeded. Individual PV modules can be installed in any combination of module number, direction, and power rating.
