Dema Zapfwellen Betonmischer Zwangsmischer Futtermischer Mischer für Traktor 300 L

PTO Concrete Mixer Forced Mixer Feed Mixer Mixer for Tractor 300 L. This innovative concrete mixer was developed from an idea for a new device that can be used for various tasks: mixing and preparing concrete, mixing feed, treating grain, washing vegetables, and drying fruits. The tilting of the mixer is done hydraulically, and the rotating axes are ball-bearing mounted. The frame of the mixer is designed to fit all common tractors. The mixer container has a 2.13 mm thick steel wall without any welds, but is solidly bolted. This allows the container to be disassembled at any time for space-saving storage or for easy replacement of heavily used parts. Loading and unloading processes are facilitated by the large opening at the top and the easy-to-use hydraulic cylinder.

Equipment:

• Operation via Category 1 three-point hitch
• Special PTO required (not included)

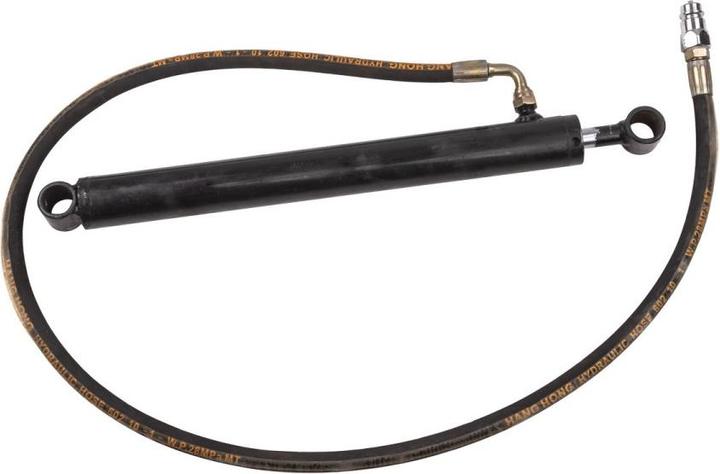

• Hydraulic top link and hydraulic hose (included)
• Chain drive
• Foot frame

Technical Data:

• Total volume: approx. 300 liters
• Usable volume: approx. 200 liters
• Filling opening: Ø 45 cm
• Drum: Ø 78 cm
• 4-way adjustable hitch
• Rotating axes ball-bearing mounted
• Required PTO 60 - 70 cm 540 RPM
• Hydraulic hose: Ø 1.88 x 160 cm long
• Overall dimensions LxWxH: 103 x 85 x 97 cm
• Weight: 120 kg

Special Features:
The drive shaft required for the concrete mixer can be found under item number 67945 in our range.
