Dema Pulley / Snatchblock XL 10 t
Delivered between Thu, 10.9. and Fri, 11.9.
More than 10 pieces in stock at third-party supplier
More than 10 pieces in stock at third-party supplier
Supplied by
free shipping
Load capacity2
Product details
Pulley / Snatch Block 10 Tons
Give your winch more pulling power with the Dema Pulley / Snatch Block XL 10 Tons! By using this pulley, you can achieve double the pulling force of your winch. It is suitable for all winches with a rope thickness of up to 15 mm and a maximum load capacity of 5 tons. Lift your loads effortlessly into the air with the Dema Pulley / Snatch Block XL 10 Tons!
Features:
- Solid metal construction
- Lubrication possible via grease nipple
- Easy handling
Technical Data:
- Load capacity: 10 tons (5 tons single, 10 tons through diversion)
- Pulley diameter: 110 mm
- Pulley width: 21 mm
- Material thickness: 6 mm
- Bolt pulley ØxL: 28x48 mm

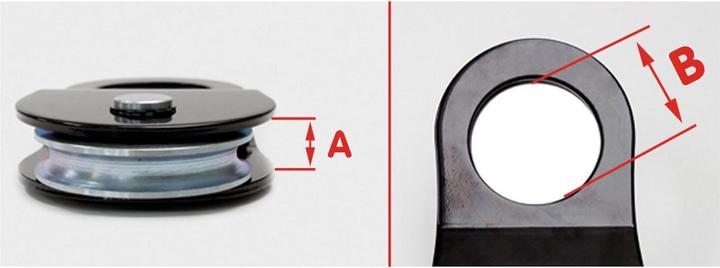

- Dimension A: 25 mm
- Dimension B: 75 mm
- Dimensions: LxWxH 26x13x4.8 cm
- Weight: 3.31 kg.
Load capacity | 10 t |
Item number | 24233443 |
Manufacturer | Dema |
Category | Conveyor technique |
Manufacturer No. | 68048 |
Release date | 22.2.2023 |
Load capacity | 10 t |
Mounting hole | 28 mm |
Frame material | Metal |
Max. vertical force | 10 kNm |
CO₂ emissions | 20.04 kg |
Climate contribution | CHF 0.48 |
Length | 26 cm |
Width | 2.10 cm |
Height | 4.80 cm |
Weight | 3.31 kg |
Specifications may include unverified machine translations.
30-day right of return
24 Months Warranty (Bring-in)
