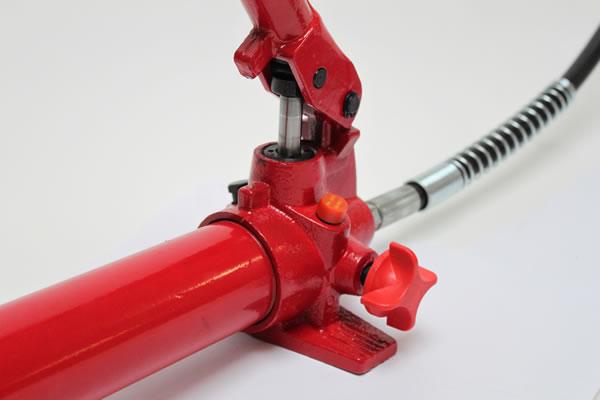

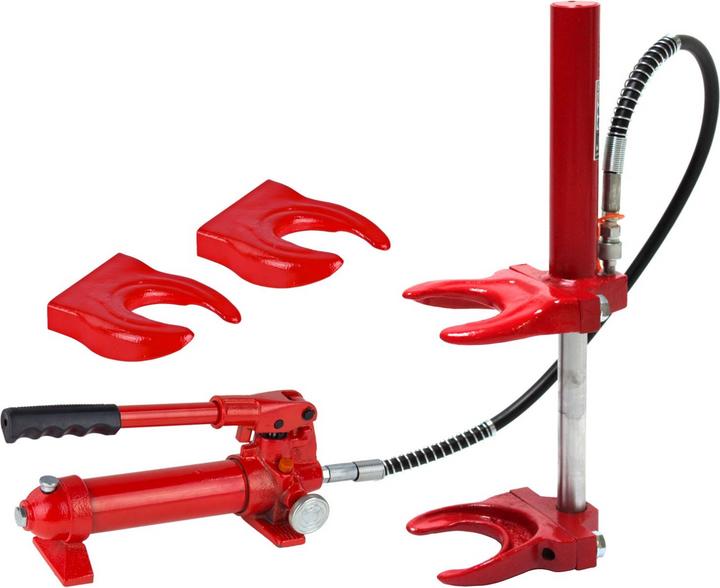

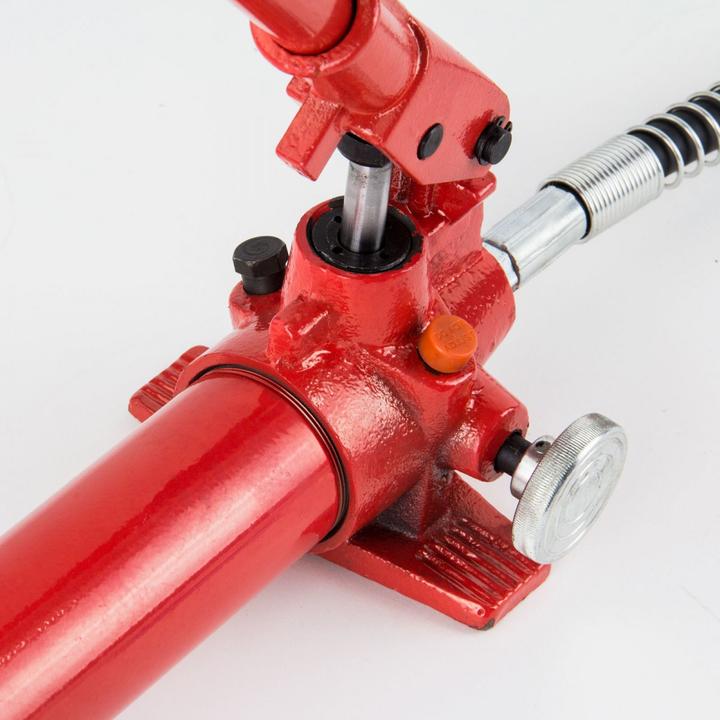

Mobile hydraulic spring compressor HF 750 kg. Shock absorber compressor for professional assembly work. Convenient work on the vehicle made easy. With our hydraulic spring compressor, you can expertly and safely handle almost all common vehicle springs. Optimal handling through interchangeable spring plates. The included hydraulic pump generates a pressure force of 750 kg. Industrial-quality equipment, simple one-lever operation, power transmission via pump, 2x plate sets, quickly ready for use.
Technical data:
Max. pressure force: 750 kg
Height spread: 13–24 cm

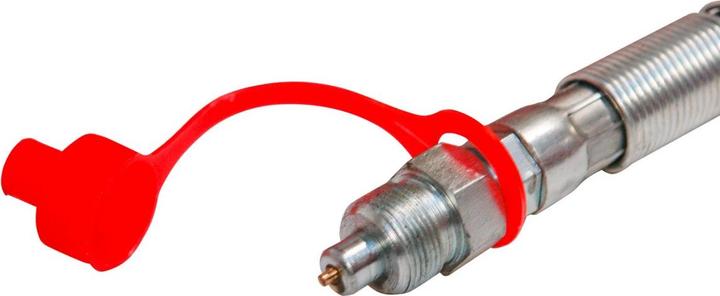

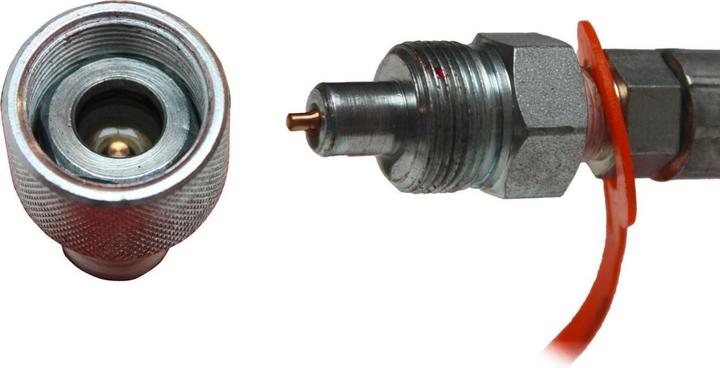

Length of pressure hose: 112 cm
Compressor cylinder Ø 49 mm
Compressor piston Ø 30 mm
Pump cylinder Ø 55 mm
Usable spring diameter:

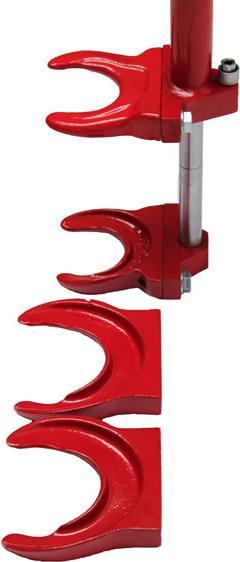

Plate set 1: 95 to 125 mm
Plate set 2: 115 to 150 mm
LxWxH without clamping plates: 56x15x9.5 cm
Weight: 21 kg.
Tool type | Spring compressor |
Item number | 22208648 |
Manufacturer | Dema |
Category | Vehicle tools |
Manufacturer no. | 24222 |
Release date | 15.9.2022 |
Material group | Metal |
Material | Metal |
Tool type | Spring compressor |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 560 mm |
Width | 150 mm |
Height | 95 mm |
Weight | 21000 g |
