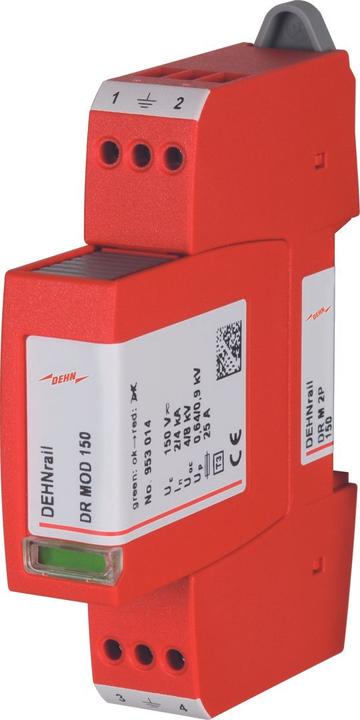

Dehn Surge arrester type 3 DEHNrail M 953204
Delivered between Thu, 12.6. and Tue, 17.6.
Only 2 items in stock at third-party supplier
Only 2 items in stock at third-party supplier
Supplied by
Elektro4000 DE
Product details

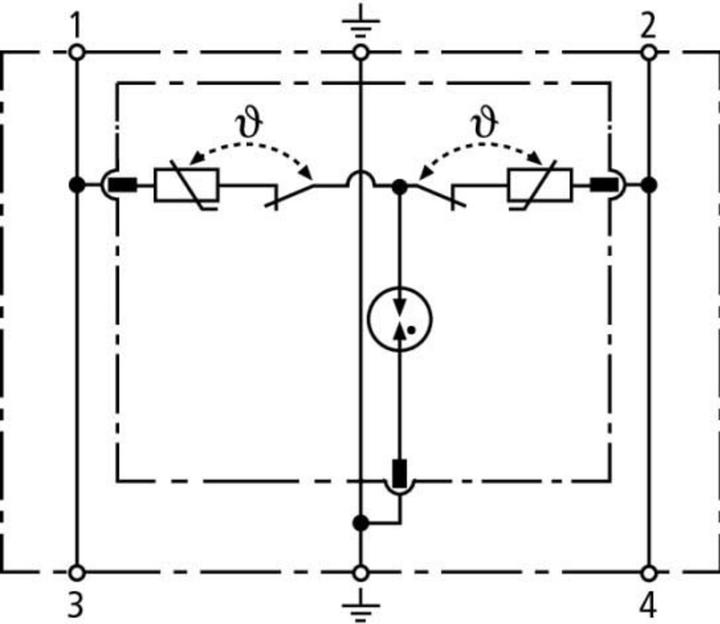

Two-pole surge arrester DEHNrail modular, Type 3 according to EN 61643-11, consisting of a base element and a plugged protection module. High discharge capacity due to a powerful combination of zinc oxide varistor and spark gap. Designed to protect the power supply of industrial electronics devices from transient overvoltages in control cabinets. Suitable for use in the lightning protection zone concept at interfaces 1 – 2 and higher.
Surge protection type | Surge arrester |
Number of conductors | 2 x |
mounting style | Top-hat rail |
Test class | Type 3 |
Item number | 33502553 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 953204 |
Release date | 17.5.2023 |
Surge protection type | Surge arrester |
Number of conductors | 2 x |
Lightning impulse current | 4 kA |
Rated leakage surge current | 0.03 kA |
Nominal voltage | 120 V |
Protection level | 0.64 V |
mounting style | Top-hat rail |
Test class | Type 3 |
Protection type (IP code) | IP20 |
Country of origin | Romania |
CO₂-Emission | |
Climate contribution |
Specifications may include unverified machine translations.
