Dehn Surge Arrester TN SPD Type 2 SPN

20000 A
Ratings
Delivered between Wed, 4.6. and Fri, 6.6.
8 items in stock at third-party supplier
Supplied by
JACOB DE

Product details

Suppressor type: Arrester type 2
Operating voltage max: 275 V AC
Mounting type: DIN rail
Peak current max: 40 kA
Series: DG

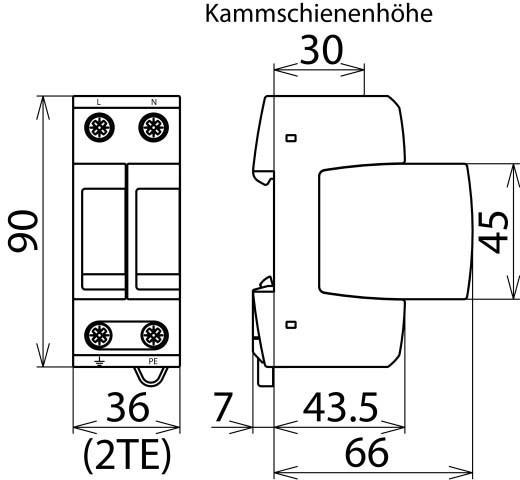

Length: 36 mm
Depth: 66 mm
Height: 90 mm
Dimensions: 36 x 66 x 90 mm
Operating temperature min: -40°C
Operating temperature max: +80°C

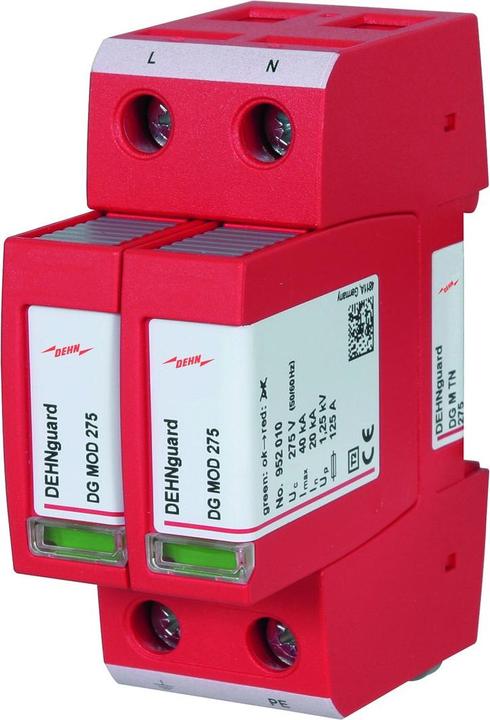

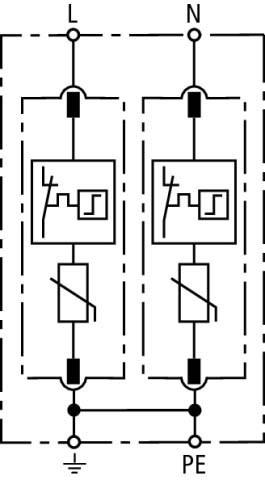

Modular surge arresters DEHNguard type 2, supplied as pre-wired base with plug-in modules. Energy coordinated with other Dehn Redline products to BS 7671 Supplement 1. High discharge capability thanks to robust metal oxide varistors and spark gaps. Status display with Thermo Dynamic Control for monitoring SPD. Tool-free replacement of connectors for repair and testing.

Key specifications

Item number
9950235

General information

Manufacturer
Dehn
Category
Fuses
Manufacturer no.
DG M TN 275
Release date
22.10.2018
External links
Manufacturer's site (de)

Colour

Colour
Red
Exact colour description
Red

Material

Material group
Plastic
Material
Thermoplastic resin

Backup Features

Nominal current
20000 A
breaking capacity
40000 A
Nominal voltage
230 V
voltage type
AC/DC

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Width
36 mm
Length
73 mm
Height
90 mm
Diameter
36 mm

Package dimensions

Length
10.10 cm
Width
7.80 cm
Height
4 cm
Weight
238 g
