Dehn Surge arrester DEHNpipe Ex (d) 929962

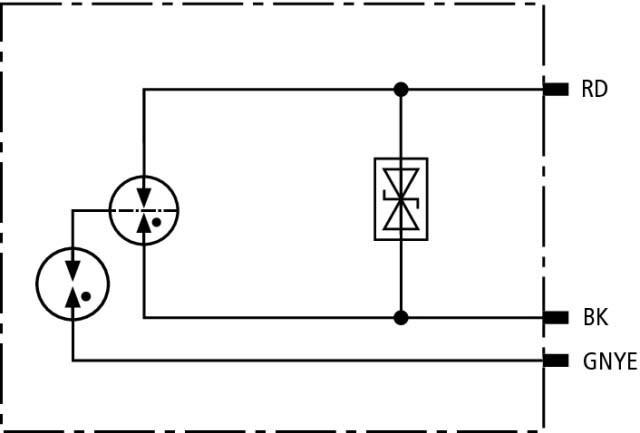

The DEHNpipe Ex (d) 929962 surge arrester is a highly advanced protection device specifically designed for use in explosion-prone areas. With a low-capacitance protection circuit and a pressure-resistant encapsulation, this product provides reliable protection for measuring circuits and bus systems. The insulation resistance of over 500 V to ground ensures high safety and reliability during operation. The surge arrester is rated for a nominal voltage of 24 volts and offers a protection level of 1200 volts, making it an effective solution for surge protection. The IP67 protection class ensures that the device operates reliably even under challenging conditions.

• Low-capacitance protection circuit for high efficiency
• Pressure-resistant encapsulation for use in explosion-prone areas
• Insulation resistance of over 500 V to ground
• IP67 protection class for optimal protection against dust and water
• Nominal discharge current of 10 A for effective surge protection.
