Product details

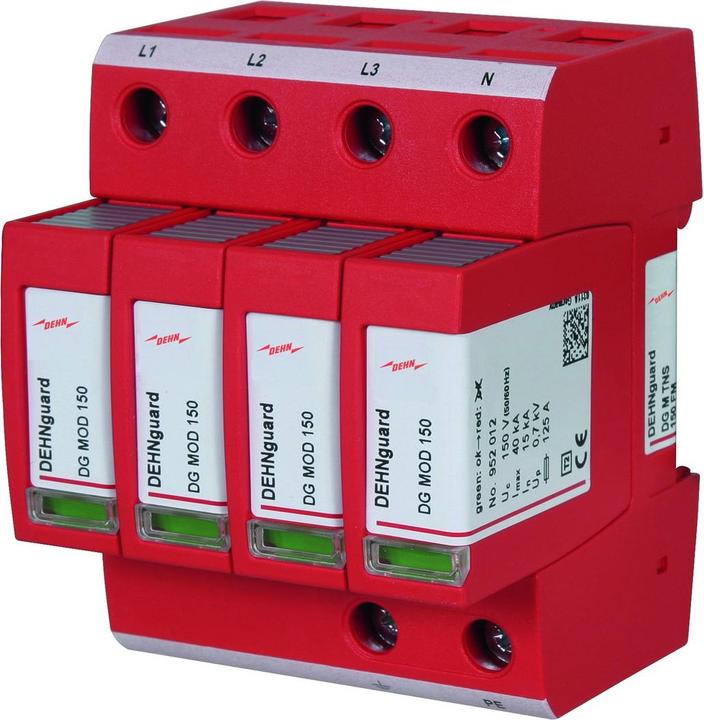

The DEHNguard M is a multipole surge arrester of type 2, designed according to the standard EN 61643-11. It provides effective protection for low-voltage consumer installations against surges that may be caused by lightning strikes or other electrical disturbances. The surge arrester consists of a base unit and plug-in protection modules, allowing for easy maintenance and replacement of the modules. A standout feature of the DEHNguard M is the integrated arrester monitoring with Thermo-Dynamic-Control, which ensures high device safety. This surge arrester is suitable for use in lightning protection concepts at interfaces 0B 1 and higher, thus providing reliable protection in various applications.
- Mounting type: DIN rail for easy installation
- Testing class: Type 2 for medium surge protection requirements
- Nominal discharge current of 15 kA for high resilience
- Lightning discharge current of 40 kA for additional protection
- Protection class IP20, suitable for use in protected indoor areas.
Surge protection type | Surge arrester |
Number of conductors | 4 x |
mounting style | Top-hat rail |
Test class | Type 2 |
Item number | 33552511 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 952408 |
Release date | 17.5.2023 |
Surge protection type | Surge arrester |
Number of conductors | 4 x |
Lightning impulse current | 40 kA |
Rated leakage surge current | 15 kA |
Nominal voltage | 120 V |
Protection level | 0.70 V |
mounting style | Top-hat rail |
Test class | Type 2 |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
