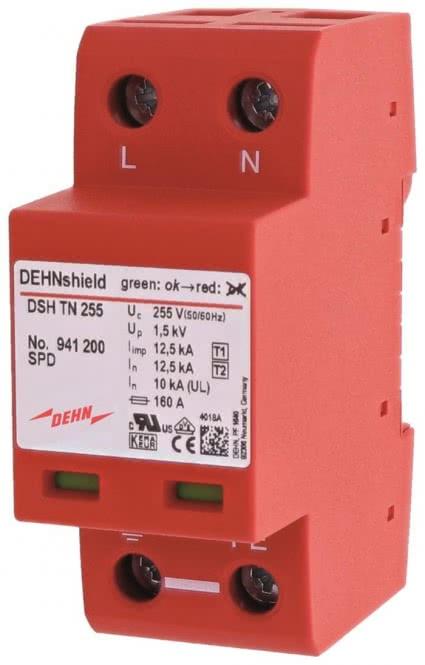

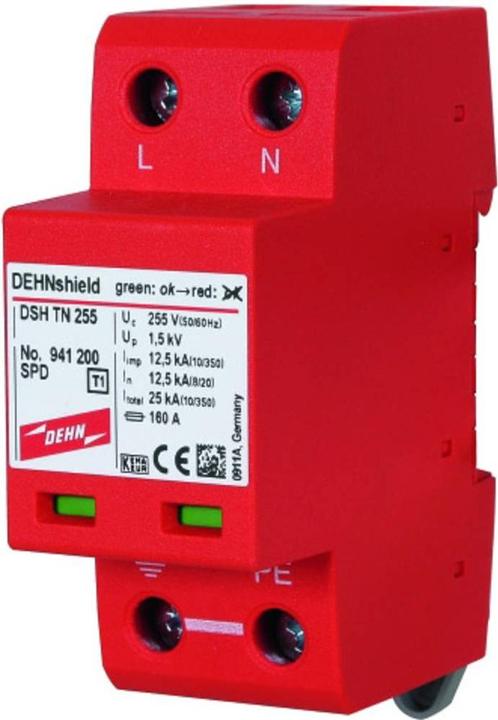

Dehn SOEHNE Combined lightning current and surge arrester TNSysteme DSH TN 255
Delivered between Tue, 3.6. and Mon, 9.6.
More than 10 items in stock at third-party supplier
More than 10 items in stock at third-party supplier
Supplied by
JACOB DE
Product details
Multipole, application-optimized DEHNshield, type 1 and type 2 combined arrester according to EN 61643-11 on spark gap basis. Non-blowout space-saving spark gap technology with only 1 TE per pole enables a compact design. Suitable for the protection of residential buildings and for use in special applications. Provides terminal protection against overvoltages, even with direct lightning strikes. Can be used according to the lightning protection zone concept at interfaces 0A-2.
Surge protection type | Combination arrester |
Number of conductors | 2 x |
mounting style | Top-hat rail |
Test class | Type 1 |
Item number | 13051167 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 941200 |
Release date | 7.4.2020 |
External links |
Colour | White |
Exact colour description | White |
Material group | Plastic |
Material | Technopolimeras |
Surge protection type | Combination arrester |
Number of conductors | 2 x |
Lightning impulse current | 25 kA |
Rated leakage surge current | 25 kA |
Nominal voltage | 230 V |
Protection level | 1.50 V |
mounting style | Top-hat rail |
Test class | Type 1 |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |

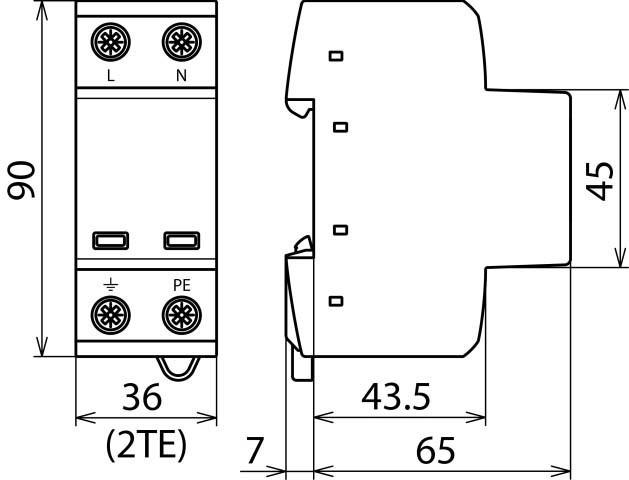

Length | 0.01 m |
Width | 0.04 m |
Height | 0.09 m |
Length | 10.40 cm |
Width | 7.90 cm |
Height | 4.30 cm |
Weight | 291 g |
