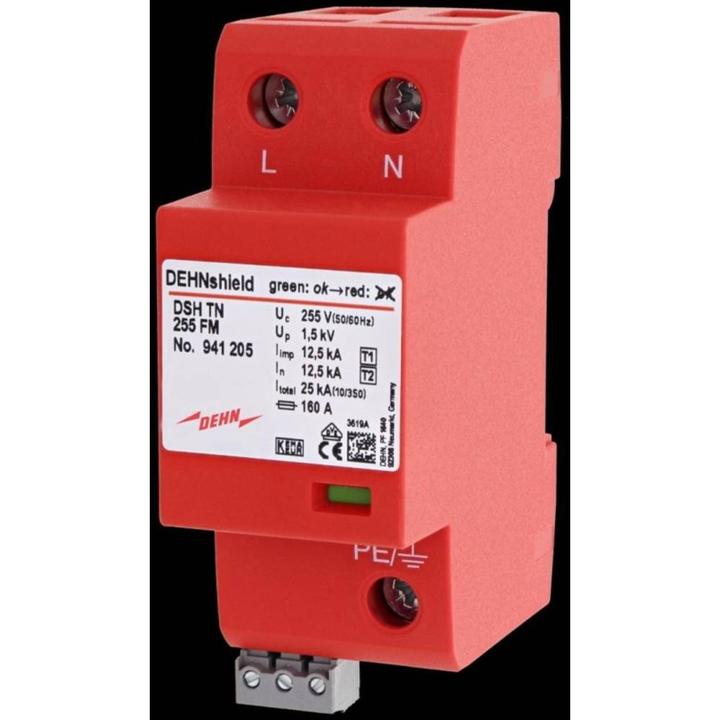

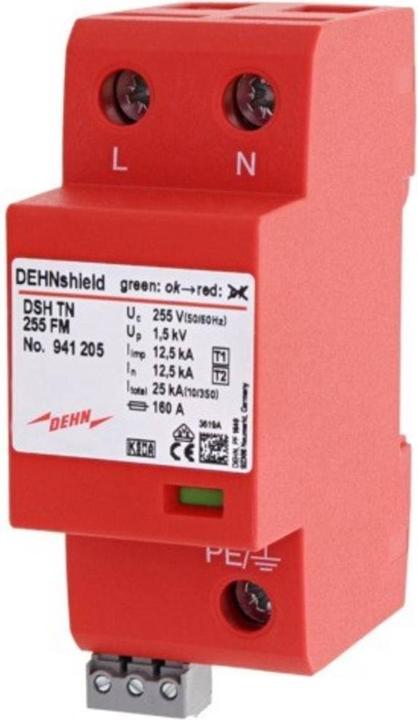

Dehn SOEHNE Combination arrestor shield DSH TN 255 Type 2
Delivered between Mon, 23.6. and Tue, 24.6.
Only 1 item in stock at third-party supplier
Only 1 item in stock at third-party supplier
Supplied by
GetGoods DE
Product details
Multipole, application-optimized DEHNshield, type 1 and type 2 combined arrester according to EN 61643-11 on spark gap basis. Space-saving spark gap technology with only 1 TE per pole enables compact design. Suitable for the protection of residential buildings and for use in special applications. Provides end device protection against overvoltages, even with direct lightning strikes. Can be used according to the lightning protection zone concept at interfaces 0A-2.
Surge protection type | Combination arrester |
Number of conductors | 2 x |
mounting style | Top-hat rail |
Test class | Type 1 |
Item number | 13051170 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 941205 |
Release date | 7.4.2020 |
External links |
Surge protection type | Combination arrester |
Number of conductors | 2 x |
Lightning impulse current | 25 kA |
Rated leakage surge current | 25 kA |
Nominal voltage | 230 V |
Protection level | 1.50 V |
mounting style | Top-hat rail |
Test class | Type 1 |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

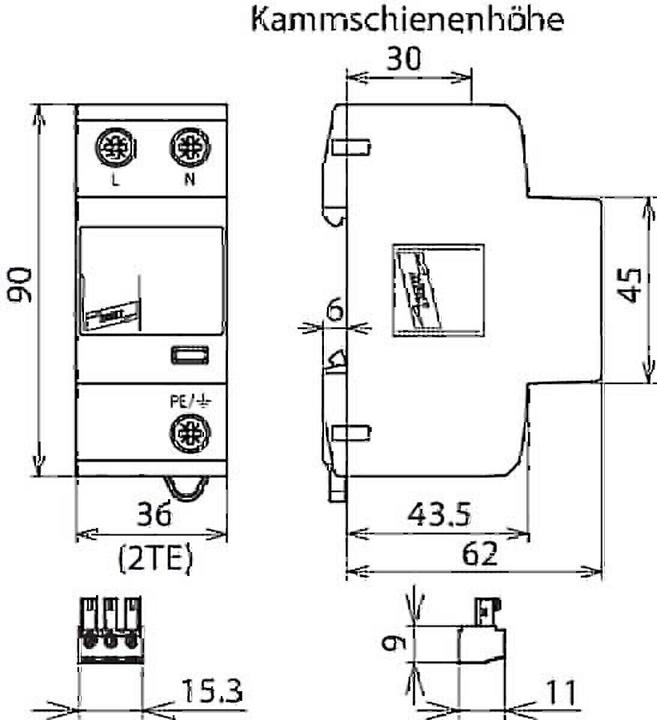

Width | 0.04 m |
Height | 0.09 m |
Specifications may include unverified machine translations.
