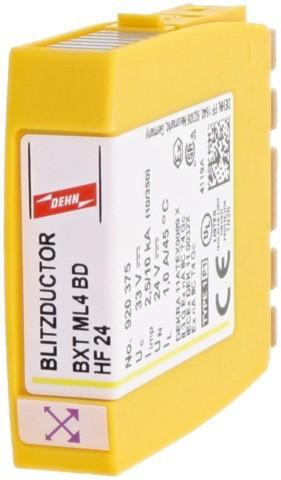

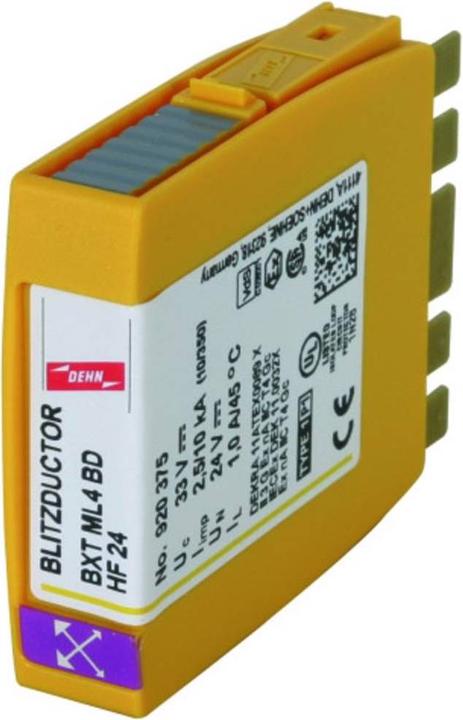

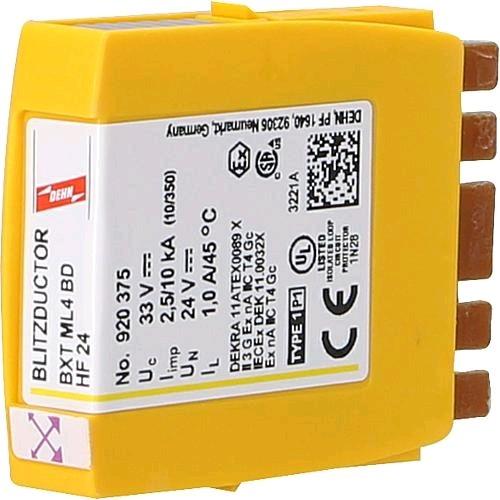

Dehn SOEHNE Combination arrestor module BLITZDUCTOR XT BXT ML4 BD HF 24
Delivered between 19.1.2026 and 31.1.2026
free shipping
Product details

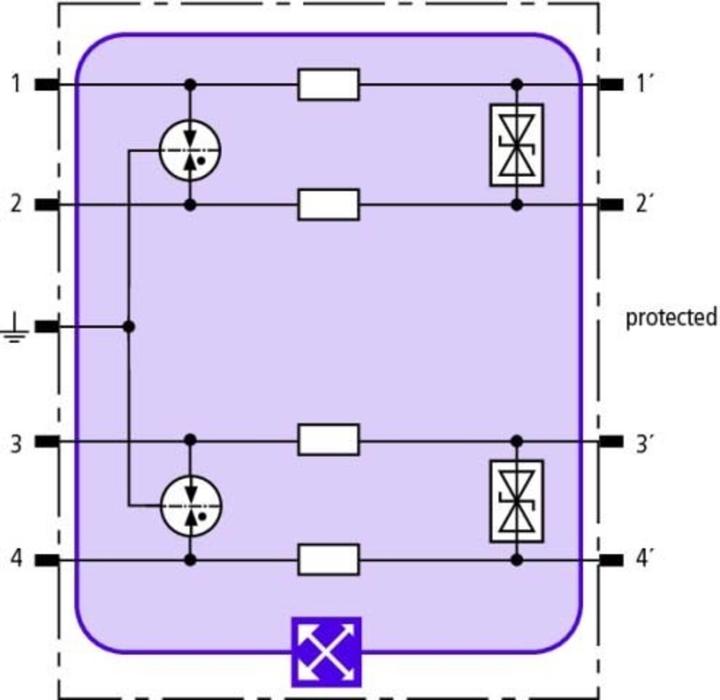

Space-saving combined arrester module with LifeCheck for the protection of two pairs of floating high-frequency bus systems or video transmissions. LifeCheck detects thermal or electrical overload conditions after which the arrester must be replaced. The indication is contactless by means of DEHNrecordLC, SCM, MCM.
Test class | Type 1 |
Surge protection type | Combination arrester |
Mounting type | Top-hat rail |
Number of conductors | 4 x |
Item number | 13031517 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 920375 |
Release date | 5.4.2020 |
Surge protection type | Combination arrester |
Number of conductors | 4 x |
Lightning impulse current | 10 kA |
Rated leakage surge current | 20 kA |
Nominal voltage | 24 V |
Protection level | 550 V |
Mounting type | Top-hat rail |
Test class | Type 1 |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

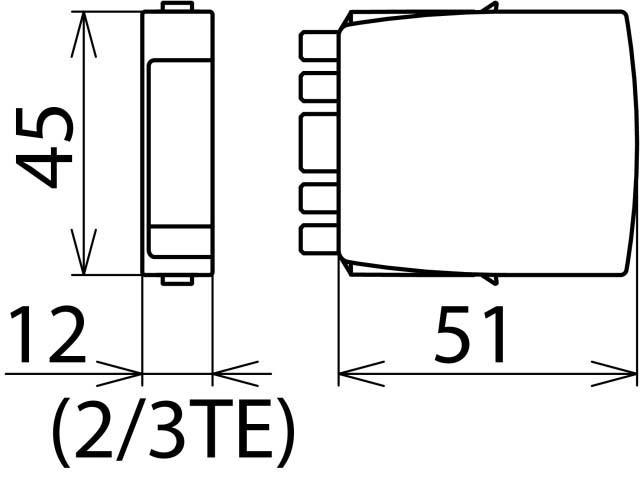

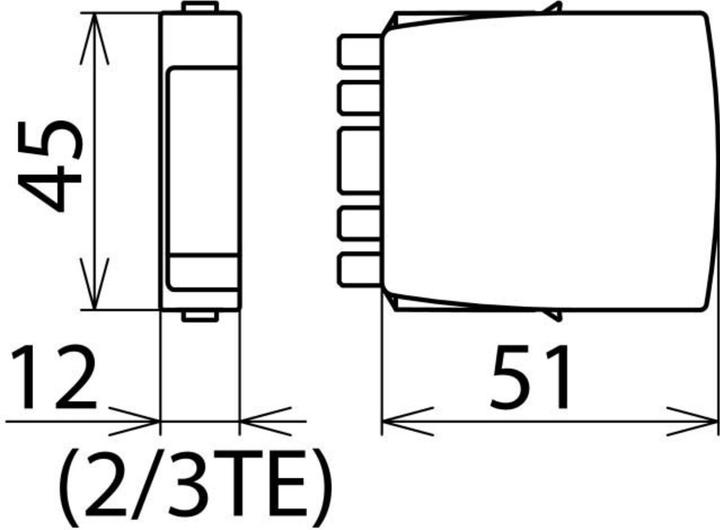

Length | 0.05 m |
Width | 0.01 m |
Height | 0.05 m |
