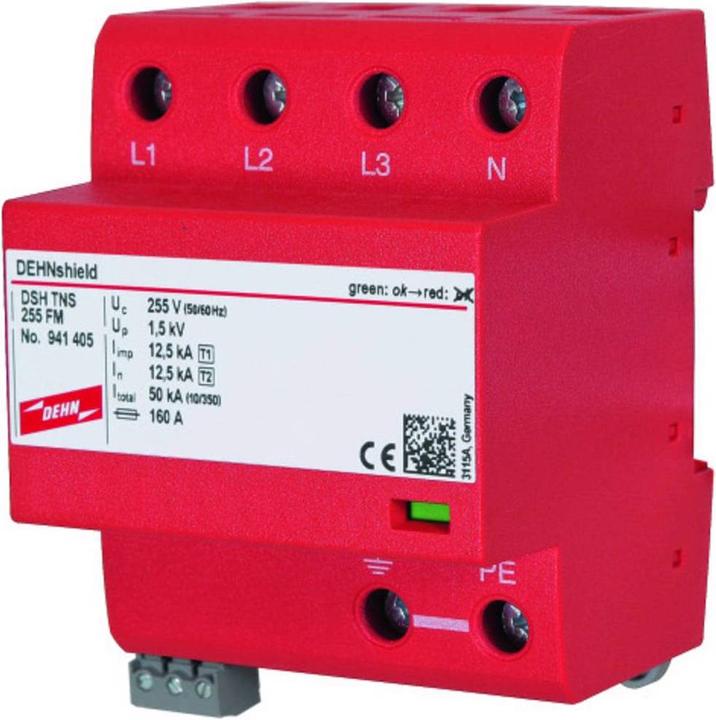

Dehn SOEHNE application-optimized DSH TNS 255 FM shield combination arrester
free shipping
Multipole, application-optimized DEHNshield, type 1 and type 2 combined arrester according to EN 61643-11 on spark gap basis. Space-saving spark gap technology with only 1 TE per pole enables a compact design. Suitable for the protection of residential buildings and special applications. Provides end device protection against overvoltages, even with direct lightning strikes. Can be used according to the lightning protection zone concept at interfaces 0A-2.
Surge protection type | Combination arrester |
Number of conductors | 2 x |
Test class | Type 1 |
Mounting type | Top-hat rail |
Item number | 13051172 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 941405 |
Release date | 7.4.2020 |
Sales rank in Category Surge protection | 8 of 2754 |
External links |
Surge protection type | Combination arrester |
Number of conductors | 2 x |
Lightning impulse current | 50 kA |
Rated leakage surge current | 25 kA |
Nominal voltage | 230 V |
Protection level | 1.50 V |
Mounting type | Top-hat rail |
Test class | Type 1 |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

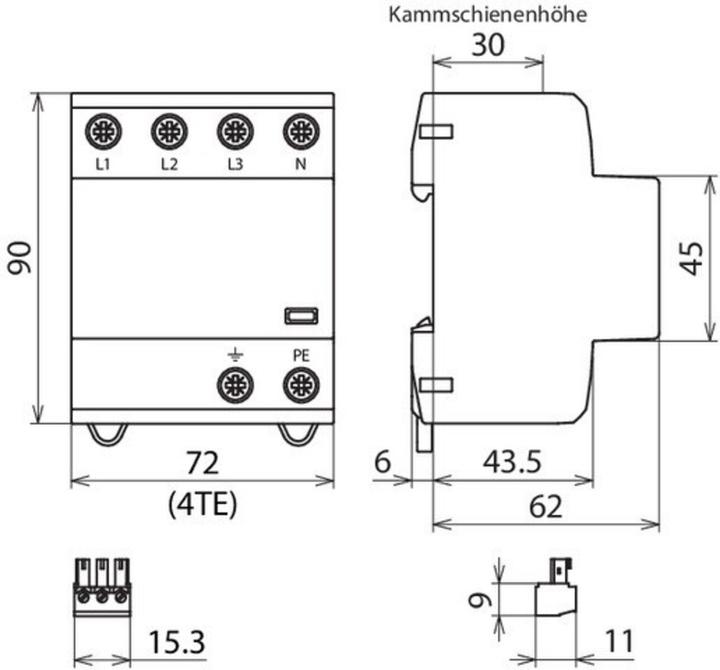

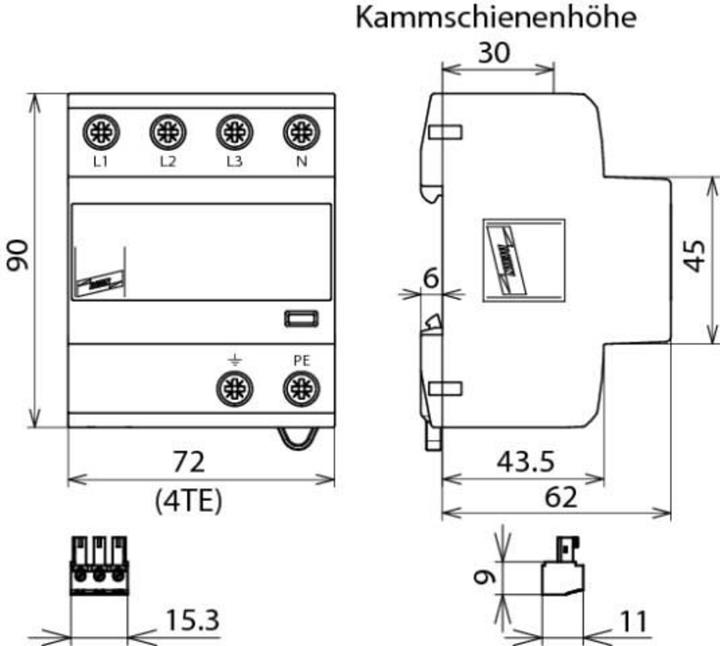

Length | 4 m |
Width | 0.07 m |
Height | 0.09 m |
Length | 12 cm |
Width | 9 cm |
Height | 9 cm |
Weight | 480 g |
