Dehn SOEHNE 951 310 Combination arrester Modular valve DV TT 255
Delivered between Fri, 31.10. and Fri, 14.11.
free shipping
Product details

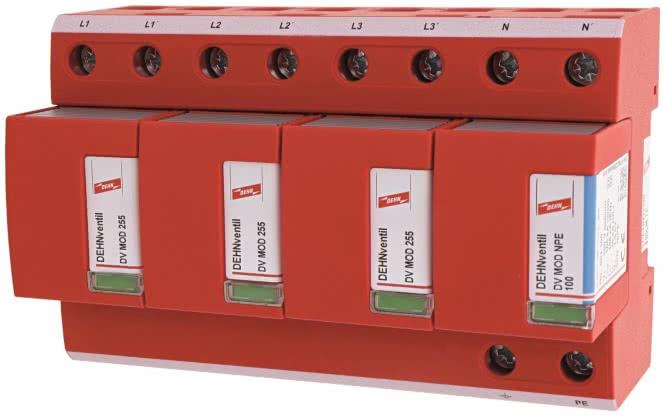

Multipole DEHNventil modular combination arrester, type 1 + type 2 according to EN 61643-11 on spark gap basis, consisting of base part and plug-in protection modules. Highest system availability due to RADAX flow follow current limitation. Enables end device protection. For protecting low-voltage consumer equipment against surges, even in the event of direct lightning strikes. Can be used according to the lightning protection zone concept at interfaces 0A-2.
Surge protection type | Combination arrester |
Number of conductors | 4 x |
mounting style | Top-hat rail |
Test class | Type 1 |
Item number | 12959992 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 951310 |
Release date | 21.3.2020 |
Surge protection type | Combination arrester |
Number of conductors | 4 x |
Lightning impulse current | 100 kA |
Nominal voltage | 230 V |
Protection level | 1.50 V |
mounting style | Top-hat rail |
Test class | Type 1 |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |

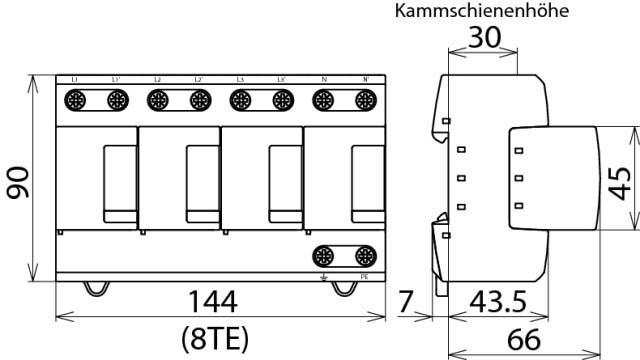

Length | 0.17 m |
Width | 0.12 m |
Height | 0.10 m |
Specifications may include unverified machine translations.
