Product details

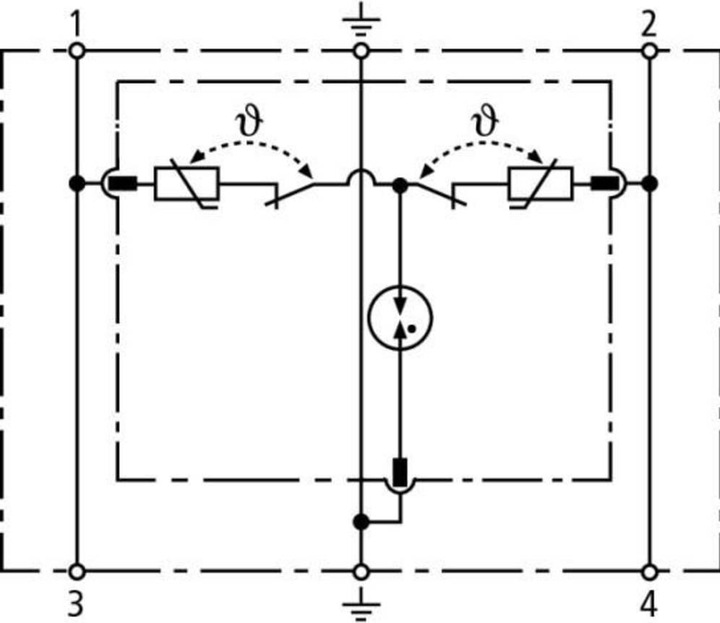

Two-pole surge arrester DEHNrail modular, Type 3 according to EN 61643-11, consisting of a base element and a plugged protection module. High discharge capacity due to a powerful combination of zinc oxide varistor and spark gap. Designed to protect the power supply of industrial electronics devices from transient overvoltages in control cabinets. Suitable for use in the lightning protection zone concept at interfaces 1 - 2 and above.
Surge protection type | Surge arrester |
Number of conductors | 2 x |
Test class | Type 3 |
Mounting type | Top-hat rail |
Item number | 13051184 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 953200 |
Release date | 7.4.2020 |
Sales rank in Category Surge protection | 10 of 1894 |
Surge protection type | Surge arrester |
Number of conductors | 2 x |
Lightning impulse current | 5 kA |
Rated leakage surge current | 3 kA |
Nominal voltage | 230 V |
Protection level | 1.25 V |
Mounting type | Top-hat rail |
Test class | Type 3 |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

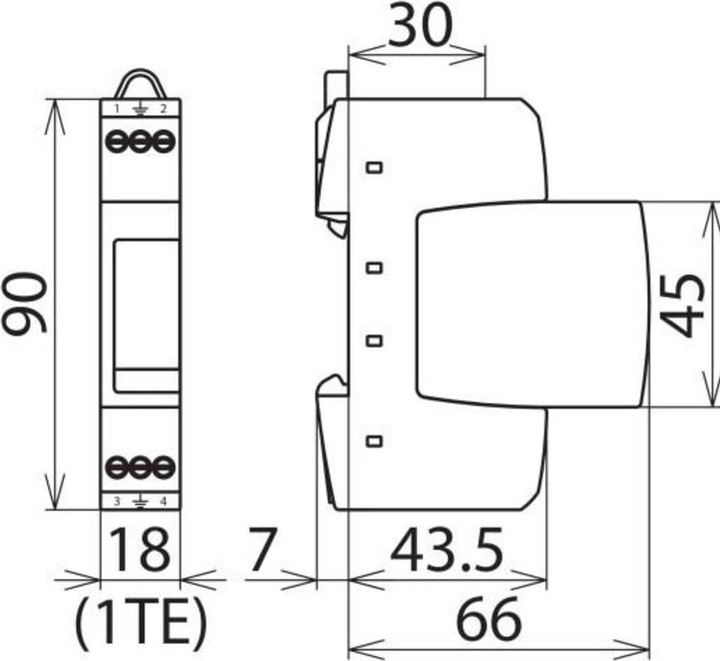

Length | 0.01 m |
Width | 0.02 m |
Height | 0.09 m |
Weight | 80 g |
Length | 11 cm |
Width | 8 cm |
Height | 2 cm |
Weight | 90 g |
Specifications may include unverified machine translations.
