Product details
Multi-pole DEHNshield Basic, type 1 + type 2 spark-gap based arrester according to EN 61643-11. Space-saving spark gap technology with only 1 TE per pole enables a compact design. Designed for the protection of residential buildings during retrofitting or refurbishment. Enables end device protection. Meets all requirements of DIN VDE 0100-534 and DIN VDE 0100-443. Can be used directly at the supply point of the electrical system.
Surge protection type | Combination arrester |
Number of conductors | 3 x |
mounting style | Top-hat rail |
Test class | Type 1 |
Item number | 13051171 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 941306 |
Release date | 7.4.2020 |
Surge protection type | Combination arrester |
Number of conductors | 3 x |
Lightning impulse current | 22.50 kA |
Nominal voltage | 230 V |
Protection level | 1.50 V |
mounting style | Top-hat rail |
Test class | Type 1 |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

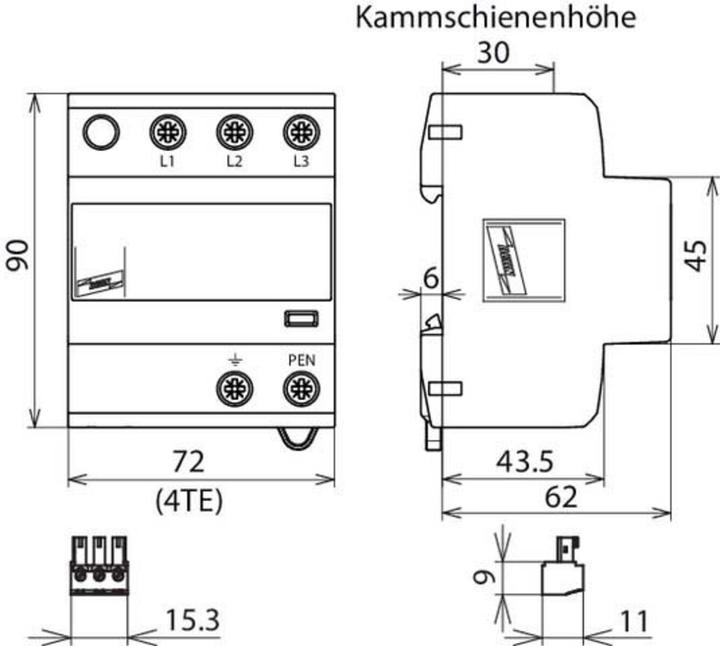

Length | 0.07 m |
Width | 0.06 m |
Height | 0.09 m |
Length | 12 cm |
Width | 8 cm |
Height | 9 cm |
Weight | 422 g |
