Dehn Earthing pipe clamp D 27mm w. 407034

Ratings
BrandMore from Dehn
Delivered between Wed, 30.9. and Thu, 15.10.
1 item ordered
Free shipping starting at 50.–

Colour2

Show all

Product details

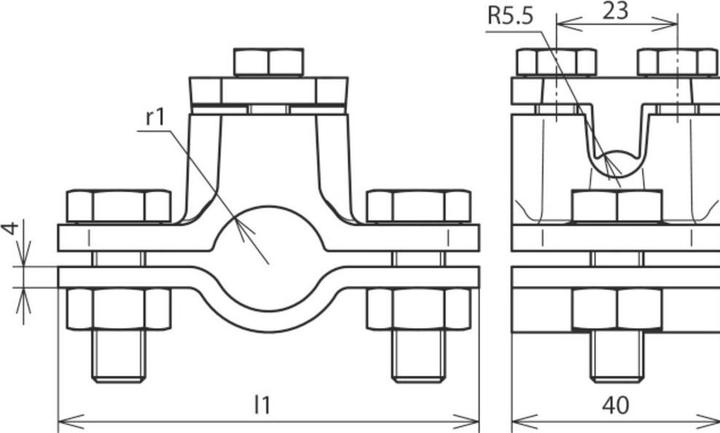

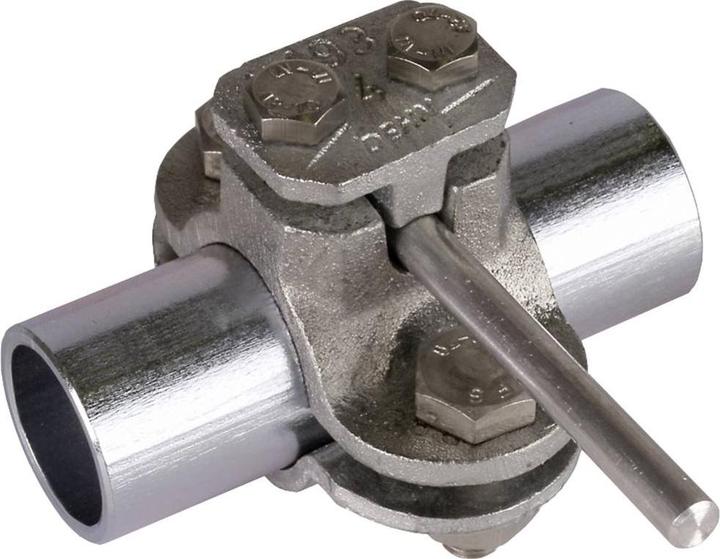

DEHN Grounding Pipe Clamp ERS27AS4.10TGSTTZN

Manufacturer: DEHN
Description: Grounding pipe clamp D 26.9 mm TG/tZn
Type: ERS27AS4.10TGSTTZN
Clamping/holding range: 27 mm
Min. clamping/holding range in inches: 3/4 inch
Max. clamping/holding range in inches: 3/4 inch
Material: Ductile iron
Surface protection: Hot-dip galvanized
Cross-section of the cable to be connected: 4..70 mm²
Number of conductors: 1

Additional details: Grounding pipe clamp for lightning protection according to DIN EN 62561-1, for integrating pipes into the protective and functional potential equalization according to DIN VDE 0100-410/540 and the lightning protection potential equalization according to DIN EN 62305-3 (VDE 0185-305-3). Version with M10 screws, connection for Rd 4-10 mm or maximum connection conductor cross-section of 70 mm².

Key specifications

Exact colour description
Grey
Items per sales unit
1x
Width
2.70 cm

General information

Item number
33060701
Manufacturer
Dehn
Category
Cable holders
Manufacturer No.
407034
Release date
16.5.2023

Colour

Colour
Grey
Exact colour description
Grey

Material

Material group
Metal
Material
Malleable iron

Cable holder properties

Mounting
Screws

Scope of delivery

Items per sales unit
1x
Scope of delivery
1 pc.

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂ emissions
2.5 kg
Climate contribution
CHF 0.11

Product dimensions

Width
2.70 cm
Weight
443 g
