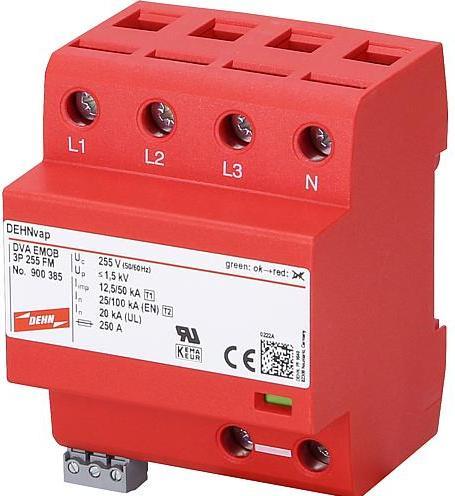

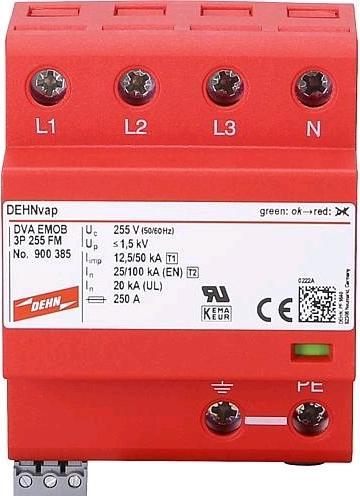

Dehn DVA EMOB 3P 255 FM Combination arrestor 230/400V 50/60Hz
Delivered between Tue, 30.12. and Wed, 7.1.
Supplied by
Venova CH
free shipping
Product details

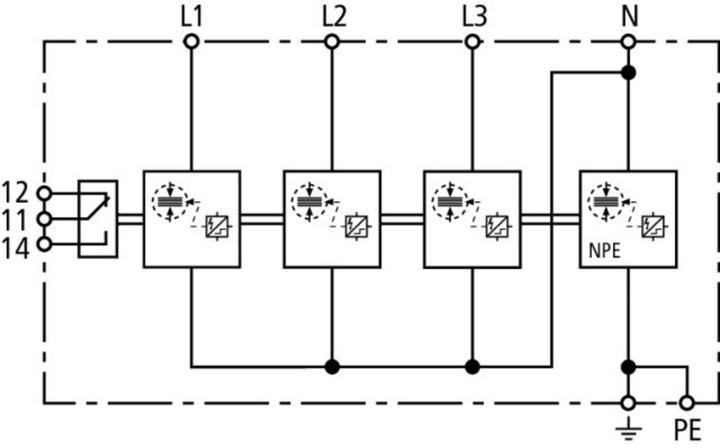

Universally applicable combined surge arrester DEHNvap EMOB, Type 1 + Type 2 according to EN 61643-11 based on RAC spark gap technology. Space-saving RAC spark gap technology with only 1 TE / pole allows for a compact design. Specifically designed for use in power supply systems for charging infrastructure. The energetically coordinated protective effect of Type 1 + Type 2 + Type 3 enables protection for end devices. Provides protection against overvoltages, including direct lightning strikes. Usable according to the lightning protection zone concept at interfaces 0A 2.
Surge protection type | Combination arrester |
Number of conductors | 4 x |
Test class | Type 1 |
Mounting type | Top-hat rail |
Item number | 22650094 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 110600 |
Release date | 12.10.2022 |
Sales rank in Category Surge protection | 10 of 2790 |
Surge protection type | Combination arrester |
Number of conductors | 4 x |
Lightning impulse current | 50 kA |
Rated leakage surge current | 25 kA |
Nominal voltage | 230 V |
Mounting type | Top-hat rail |
Test class | Type 1 |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |

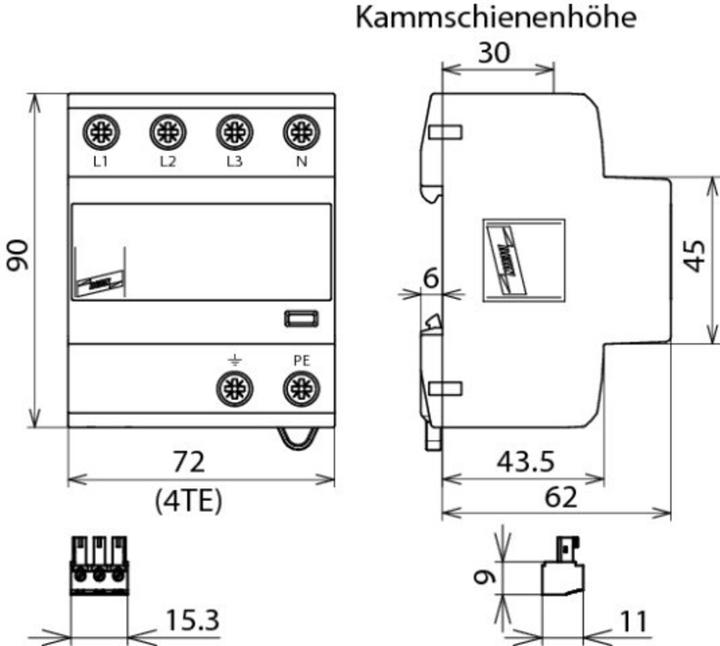

Length | 11.50 cm |
Width | 9 cm |
Height | 9 cm |
Weight | 530 g |
Specifications may include unverified machine translations.
