Product details

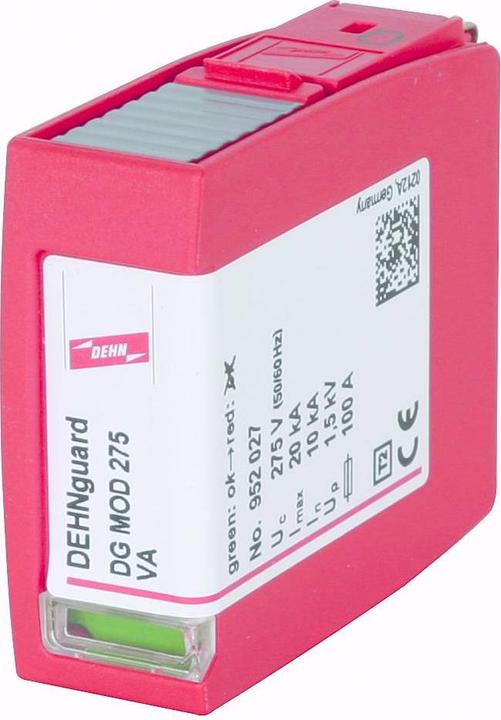

The Dehn DG MOD 275 VA is a Type 2 surge arrester specifically designed for use in modular DEHNguard systems. This protection module provides effective safeguarding against surges caused by lightning strikes or other electrical disturbances. With a nominal voltage of 230 volts and a nominal discharge current of 10 kA, the DG MOD 275 VA ensures reliable protection for electrical installations. The protection level of only 1.5 volts demonstrates the device's high efficiency, while the lightning discharge current of 20 kA offers additional safety. Manufactured in Germany, this product meets the requirements of the EN 61643-11 standard, making it a trusted choice for protecting your electrical systems.
- Type 2 surge arrester for modular DEHNguard systems
- Lightning discharge current of 20 kA for high protection
- Nominal discharge current of 10 kA
- Protection level of only 1.5 volts for optimal efficiency.
Surge protection type | Surge arrester |
Number of conductors | 1 x |
Test class | Type 2 |
Item number | 33544079 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 952027 |
Release date | 17.5.2023 |
Surge protection type | Surge arrester |
Number of conductors | 1 x |
Lightning impulse current | 20 kA |
Rated leakage surge current | 10 kA |
Nominal voltage | 230 V |
Protection level | 1.50 V |
Test class | Type 2 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Specifications may include unverified machine translations.
30-day right of return
24 Months Warranty (Bring-in)
