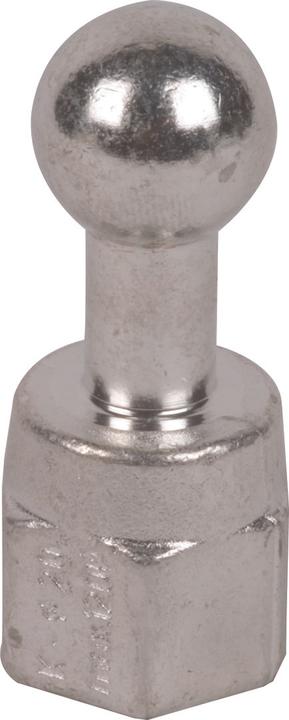

Dehn Ball fixed point D 20mm straight
Delivered between Sat, 29.11. and Sat, 6.12.
More than 10 pieces in stock at supplier
More than 10 pieces in stock at supplier
Free shipping starting at 50.–
Product details
DEHN Ball Anchor Point KFP 20 M12
Manufacturer: DEHN
Designation: Ball anchor point M12 D20mm straight
Type: KFP 20 M12
Max. Short-circuit current: 33.5 kA
Design: straight
Mounting type: with internal thread
Connection of the EuK device: Ball anchor point 20 mm
Max. Cable cross-section copper: 120 mm²
Diameter of anchor point: 20 mm
Additional details: Straight ball anchor point with internal thread as phase and earth connection point according to DIN VDE 0683-100 (EN/IEC 61230) on the conductor and grounding system. High mechanical strength due to the non-cutting formed thread. Therefore also suitable as a cable lug and busbar connection according to DIN 43673-1.
Item number | 23987331 |
Manufacturer | Dehn |
Category | Electrical installation small parts |
Manufacturer no. | 754200 |
Release date | 21.11.2022 |
External thread | M12 |
Clamps diameter | 20 mm |
Plug type | Flat |
Manufacturer Type | KFP 20 M12 |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 pcs. |
Scope of delivery | 1 |
Diameter | 20 mm |
Specifications may include unverified machine translations.
