Dehn 961120 Lightning current arrester 1-pole DEHNbloc M 50kA
Delivered between Mon, 23.6. and Thu, 26.6.
More than 10 items in stock at third-party supplier
More than 10 items in stock at third-party supplier
Supplied by
Elektro4000 DE
Product details
Single-pole, coordinated surge arrester DEHNbloc modular, type according to EN 61643-11 based on spark gaps, consisting of a base part and a plugged protection module. Maximum system availability due to RADAX-Flow follow current limitation. Designed to protect low-voltage consumer systems from overvoltages, even in the event of direct lightning strikes. Suitable for use in lightning protection zone concepts at interfaces 0A1. DB M 1 255.
Surge protection type | Lightning current arrester |
Number of conductors | 1 x |
mounting style | Top-hat rail |
Test class | Type 1 |
Item number | 23119841 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 961120 |
Release date | 16.11.2022 |
External links |
Surge protection type | Lightning current arrester |
Number of conductors | 1 x |
Lightning impulse current | 50 kA |
Rated leakage surge current | 50 kA |
Nominal voltage | 230 V |
Protection level | 2.50 V |
mounting style | Top-hat rail |
Test class | Type 1 |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |

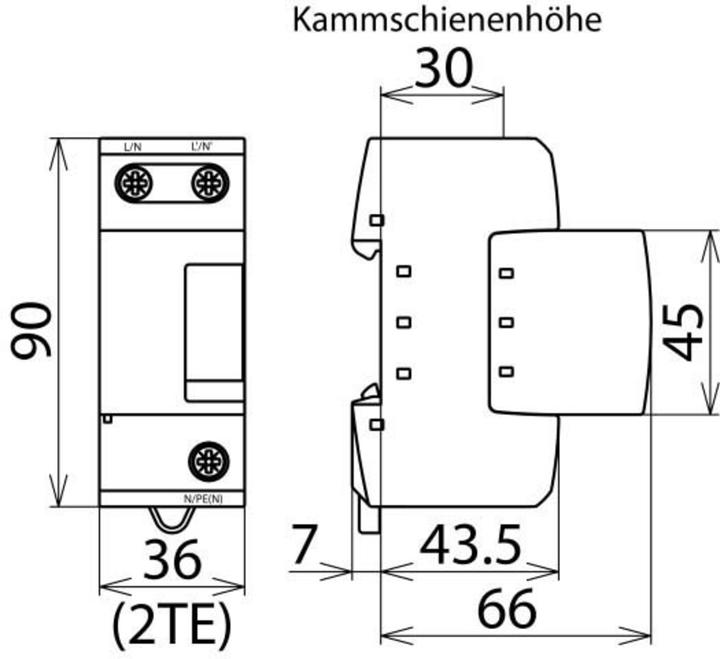

Width | 0.04 m |
Height | 0.09 m |
Specifications may include unverified machine translations.
