Dehn 953201 overvoltage discharger dr-m-2p-30
Delivered between Wed, 28.5. and Wed, 4.6.
Only 2 items in stock at supplier
Only 2 items in stock at supplier
Product details

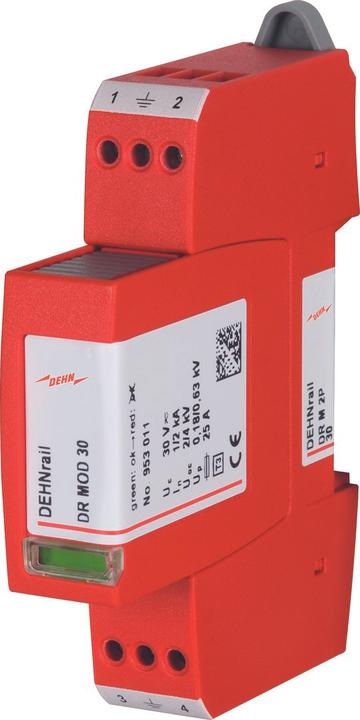

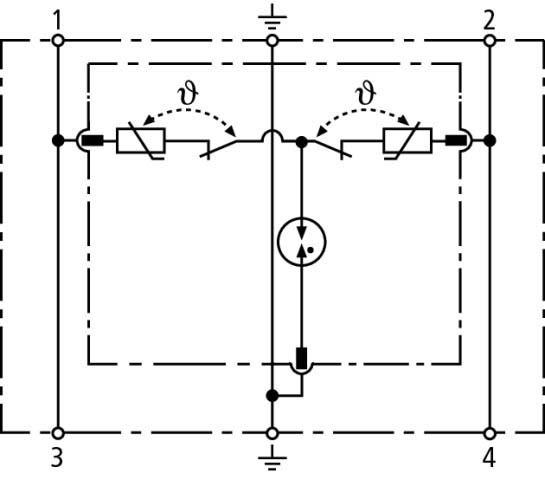

Two-pole surge arrester DEHNrail modular, type according to EN 61643-11, consisting of a base element and a plugged protection module. High discharge capacity due to a powerful zinc oxide varistor spark gap combination. Designed to protect the power supply of industrial electronics devices from transient overvoltages in control cabinets. For use in the lightning protection zone concept at interfaces and above. DR M 2P 30.
Surge protection type | Surge arrester |
Number of conductors | 2 x |
mounting style | Top-hat rail |
Test class | Type 3 |
Item number | 23108255 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 953201 |
Release date | 6.11.2022 |
External links |
Surge protection type | Surge arrester |
Number of conductors | 2 x |
Rated leakage surge current | 1 kA |
Nominal voltage | 24 V |
Protection level | 0.18 V |
mounting style | Top-hat rail |
Test class | Type 3 |
Protection type (IP code) | IP20 |
Country of origin | Romania |
CO₂-Emission | |
Climate contribution |

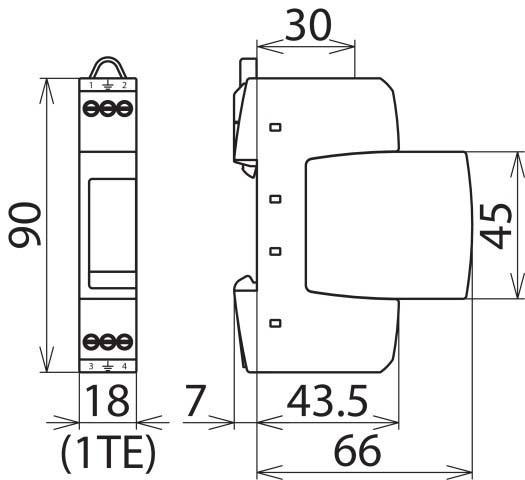

Length | 11.10 cm |
Width | 8.10 cm |
Height | 2.50 cm |
Weight | 94 g |
Specifications may include unverified machine translations.
