Dehn 952095 arrester sobretensiónes dg-s-440-fm
Delivered between Fri, 6.6. and Wed, 11.6.
Only 4 items in stock at supplier
Only 4 items in stock at supplier
Product details

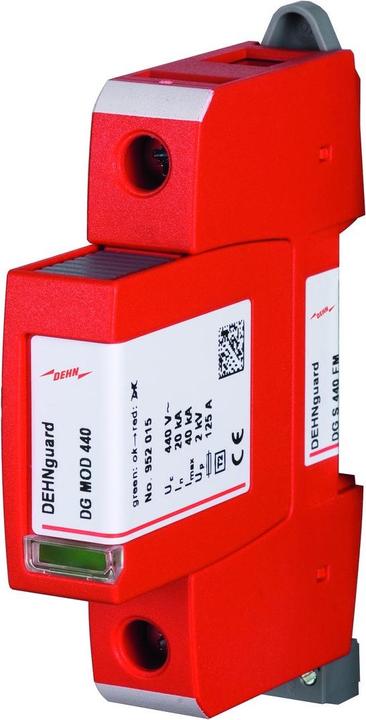

The Dehn 952095 DGS440FM surge arrester is a single-pole Type 2 surge protection device designed according to the EN 61643-11 standard. It provides effective protection for low-voltage consumer installations against surges that may be caused by lightning strikes or other electrical disturbances. The arrester consists of a base unit and a plug-in protection module, allowing for easy maintenance and interchangeability. Equipped with high device safety, the DGS440FM features arrester monitoring with Thermo-Dynamic-Control, ensuring reliable operation. This surge arrester is suitable for use in lightning protection zones at interfaces 0B 1 and higher and can be easily mounted on a DIN rail.
- Nominal discharge current of 40 kA for high load capacity
- Lightning discharge current of 20 kA for additional protection
- Protection class IP20, suitable for indoor applications
- Nominal voltage of 400 V for versatile applications
- Thermo-Dynamic-Control for monitoring device safety.
Surge protection type | Surge arrester |
Number of conductors | 1 x |
mounting style | Top-hat rail |
Test class | Type 2 |
Item number | 23007663 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 952095 |
Release date | 6.11.2022 |
External links |
Surge protection type | Surge arrester |
Number of conductors | 1 x |
Lightning impulse current | 20 kA |
Rated leakage surge current | 40 kA |
Nominal voltage | 400 V |
Protection level | 2 V |
mounting style | Top-hat rail |
Test class | Type 2 |
Protection type (IP code) | IP20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Length | 10.50 cm |
Width | 8.70 cm |
Height | 2.40 cm |
Weight | 144 g |
