Dehn 922220 DBX TC B 180 DBX TC B 180 Lightning current arrester DEHNbox
Delivered between Thu, 19.3. and Fri, 20.3.
Only 1 piece in stock at third-party supplier
Only 1 piece in stock at third-party supplier
Supplied by
Conrad CH
free shipping
Product details

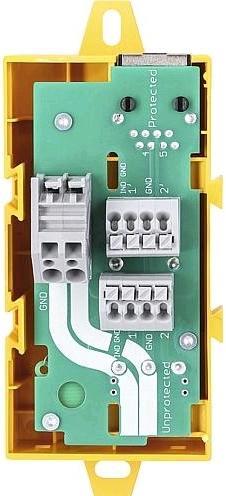

Compact surge arrester in a plastic surface-mounted housing for the protection of information technology interfaces, particularly telecommunications connections up to VDSL and G.fast up to GBit/s. Option to connect multiple arresters in series. Tool-free quick connection technology for the input side connection of a twisted pair, with integrated strain relief for the connection cable. At the output, optional connection of a twisted pair or a patch cable with RJ45 connector. DBX TC B 180.
Surge protection type | Lightning current arrester |
Number of conductors | 2x |
Mounting type | Finery |
Test class | Type 1 |
Item number | 22613942 |
Manufacturer | Dehn |
Category | Surge protection |
Manufacturer no. | 922220 |
Release date | 7.10.2022 |
Sales rank in Category Surge protection | 13 of 2581 |
External links |
Material group | Plastic |
Surge protection type | Lightning current arrester |
Number of conductors | 2x |
Lightning impulse current | 7.50 kA |
Rated leakage surge current | 20 kA |
Nominal voltage | 180 V |
Protection level | 700 V |
Mounting type | Finery |
Mounting type | Adhesive |
Test class | Type 1 |
Protection type (IP code) | IP20 |
Country of origin | China |
CO₂ emissions | 11 kg |
Climate contribution | CHF 0.26 |

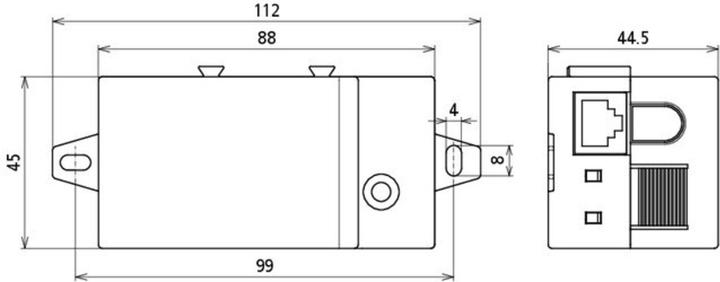

Length | 0.12 m |
Width | 0.06 m |
Height | 0.06 m |
Weight | 210 g |
Length | 12 cm |
Width | 6 cm |
Height | 6 cm |
Weight | 255 g |
Specifications may include unverified machine translations.
